SENSORS / SOLENOIDS / CONVERSION HARNESSES

SpeedFactory Racing MAP Sensors, Boost Control Solenoids & ECU Conversion Harnesses

Honda & Acura Engine Management Sensors and Electronics

SpeedFactory Racing offers engine management sensors, electronic boost control solenoids, and ECU conversion harnesses for Honda and Acura performance and racing applications.

Our collection includes 3-bar and 4-bar MAP sensors, throttle position sensors (TPS), 3-port and 4-port boost control solenoids, mounting accessories, and OBD conversion harnesses for selected Honda engine management configurations.

Correct sensor selection, calibration, wiring, and ECU compatibility are essential when assembling or modifying an engine management system.

SpeedFactory Racing 3-Bar & 4-Bar MAP Sensors

A manifold absolute pressure (MAP) sensor measures the absolute pressure inside an engine's intake manifold and communicates that information to the engine control unit (ECU).

In turbocharged applications, an appropriate MAP sensor allows a compatible engine management system to monitor intake manifold pressure above atmospheric pressure.

SpeedFactory Racing offers 3-bar and 4-bar MAP sensor options for supported applications.

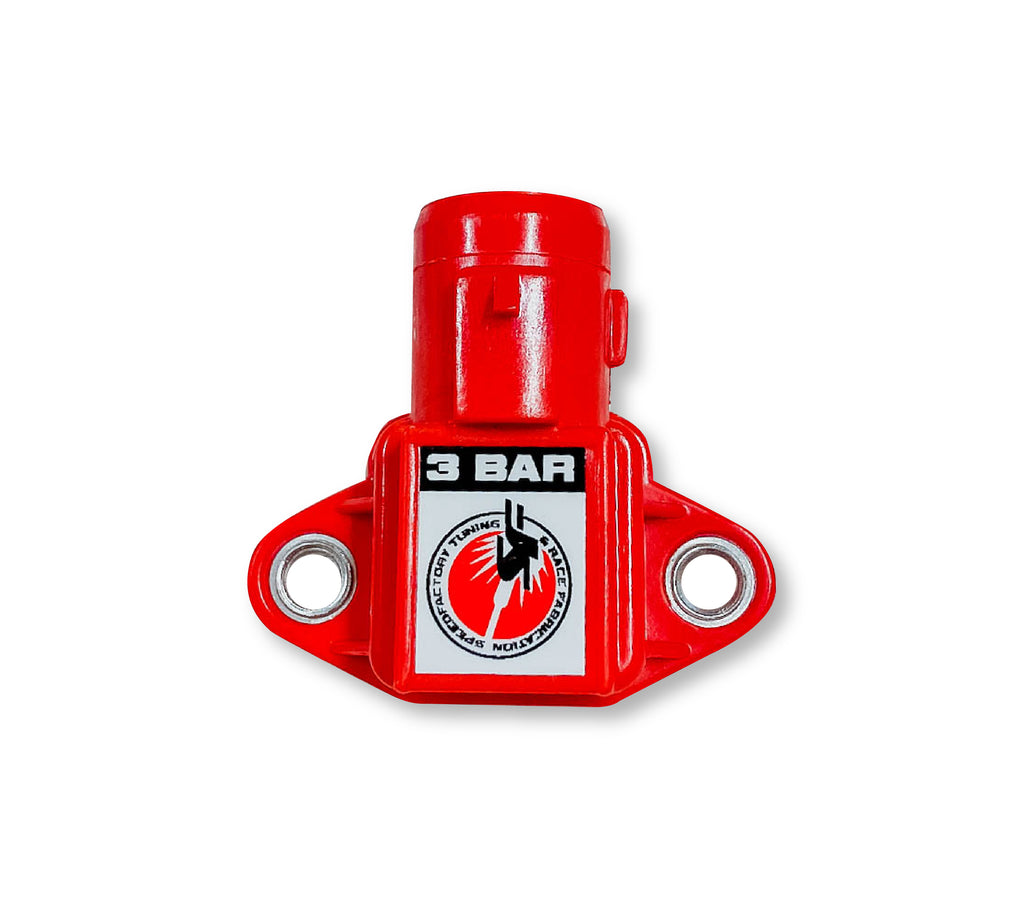

3-Bar MAP Sensors

A 3-bar MAP sensor is designed to measure absolute manifold pressure up to approximately 3 bar, depending on the specific sensor's specifications.

4-Bar MAP Sensors

A 4-bar MAP sensor provides a higher absolute pressure measurement range than a 3-bar sensor and may be appropriate for certain higher-boost applications.

MAP sensor pressure ranges are absolute, not simply boost pressure above atmospheric pressure. The usable boost measurement range also depends on local atmospheric pressure.

When upgrading a MAP sensor, the ECU must be configured with the correct calibration data for that particular sensor. An incorrect sensor calibration can result in inaccurate pressure readings and improper engine operation.

Electronic Boost Control Solenoids: 3-Port vs. 4-Port

SpeedFactory Racing offers 3-port and 4-port electronic boost control solenoids for supported turbocharged applications.

An electronic boost control solenoid regulates pneumatic pressure signals to the wastegate under the control of a compatible boost controller or ECU.

3-Port Boost Control Solenoids

A 3-port boost control solenoid is commonly used in electronic boost control arrangements where the controller regulates pressure supplied to or vented from the wastegate actuator.

4-Port Boost Control Solenoids

A 4-port solenoid can support other boost control plumbing configurations, including certain arrangements using dual-port external wastegate actuators.

The correct solenoid depends on the wastegate design, boost control strategy, pressure source, ECU output capabilities, and required pneumatic plumbing.

A 4-port solenoid is not automatically better for every turbo system. Correct configuration and professional tuning are critical.

Boost Control Solenoid Mounting Brackets & Accessories

SpeedFactory Racing also offers mounting accessories for electronic boost control solenoids.

Proper mounting can help organize pneumatic connections and electrical wiring within a modified engine bay.

When installing a boost control solenoid, consider heat exposure, vibration, moisture, wiring protection, hose routing, and accessibility for inspection.

Always follow the solenoid manufacturer's electrical and pneumatic installation instructions.

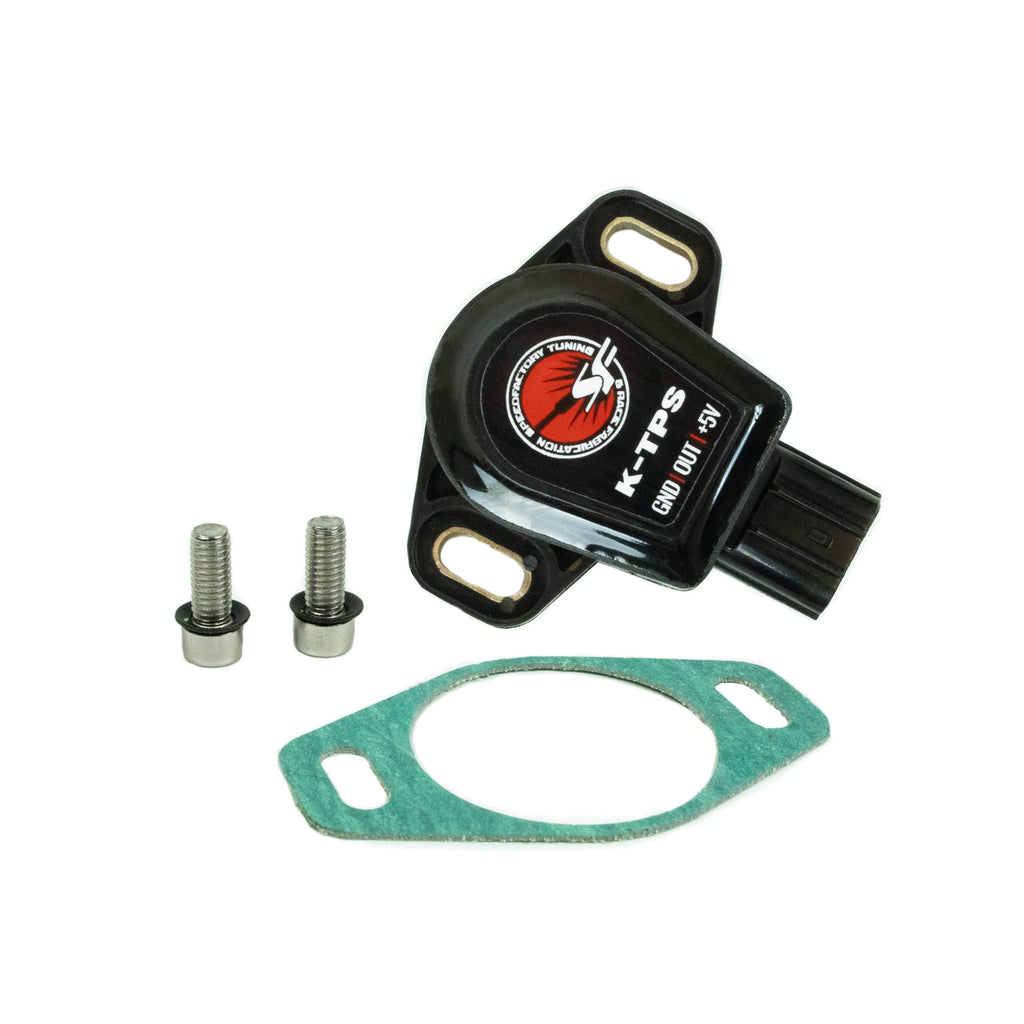

Honda & Acura Throttle Position Sensors (TPS)

SpeedFactory Racing offers throttle position sensor options for selected Honda and Acura applications.

A TPS reports throttle position to the ECU, helping the engine management system determine driver input and operating conditions.

Incorrect TPS calibration, wiring, or sensor compatibility can cause throttle-response issues and inaccurate engine management data.

Before selecting a replacement or aftermarket TPS, verify the throttle body design, connector type, output characteristics, and ECU compatibility.

Honda OBD0 & OBD2 to OBD1 ECU Conversion Harnesses

SpeedFactory Racing offers ECU conversion harnesses for selected Honda and Acura engine management applications.

These include OBD0-to-OBD1 and OBD2-to-OBD1 conversion harness options for compatible vehicle and ECU configurations.

An ECU conversion harness provides an electrical interface between supported vehicle wiring and the intended engine control unit.

Conversion harness selection depends on the vehicle's original wiring configuration, engine management system, ECU connector arrangement, and any modifications made to the engine harness.

A conversion harness does not automatically make every ECU compatible with every Honda or Acura vehicle. Additional wiring, sensor, distributor, and ECU configuration requirements may apply.

Choosing the Correct Engine Management Components

Before purchasing a MAP sensor, boost control solenoid, TPS, or ECU conversion harness, consider:

• Engine platform and vehicle model year
• ECU or standalone engine management system
• Sensor measurement range and calibration
• Connector style and electrical pinout
• Boost control solenoid port configuration
• Wastegate actuator type and plumbing requirements
• OBD generation and ECU conversion compatibility
• Intended racing application and operating conditions

Electrical components must be installed and configured correctly. Incorrect wiring, inaccurate calibration, or improper boost control plumbing can lead to engine damage or unsafe operating conditions.

Frequently Asked Questions About Honda Sensors & Boost Control

What is the difference between a 3-bar and 4-bar MAP sensor?

The primary difference is the absolute pressure measurement range. A 4-bar sensor can measure higher absolute manifold pressures than a 3-bar sensor, but the ECU must support and be calibrated for the selected sensor.

Do I need to tune my ECU after installing a larger MAP sensor?

The ECU needs the correct calibration for the installed MAP sensor. Changing to a sensor with a different pressure-to-voltage relationship generally requires updating the ECU configuration before operating the engine.

Should I use a 3-port or 4-port boost control solenoid?

The appropriate choice depends on your wastegate configuration, ECU or boost controller, and desired boost control arrangement. Use the plumbing configuration recommended for the specific components.

Will a boost control solenoid increase horsepower?

A boost control solenoid does not directly produce horsepower. It enables a compatible control system to regulate turbocharger boost pressure. Engine performance depends on the complete turbo system, fuel delivery, tuning, and mechanical limits.

What does an OBD2-to-OBD1 conversion harness do?

A compatible OBD2-to-OBD1 harness adapts certain vehicle-side ECU wiring connections to an OBD1-style ECU arrangement. Additional modifications or configuration may be needed depending on the vehicle and engine management setup.

Will any Honda TPS work with an aftermarket throttle body?

No. TPS compatibility depends on mounting geometry, connector configuration, electrical output, and ECU requirements. Always verify fitment before purchasing.

Shop SpeedFactory Racing Sensors, Solenoids & Conversion Harnesses

Whether you're preparing a turbocharged Honda B-Series engine, configuring boost control for a racing application, or adapting a compatible Honda ECU setup, accurate sensor information and proper component selection are essential.

Explore SpeedFactory Racing MAP sensors, TPS components, electronic boost control solenoids, mounting hardware, and ECU conversion harnesses to find parts appropriate for your application.

For assistance with fitment and component selection, contact the SpeedFactory Racing team.

Important: Performance electronics and related modifications may be subject to racing-use and emissions restrictions. Review the full collection disclaimer and individual product information before purchase or installation.
