YCP Vitara Pistons with Eagle H-Beam Rods D16

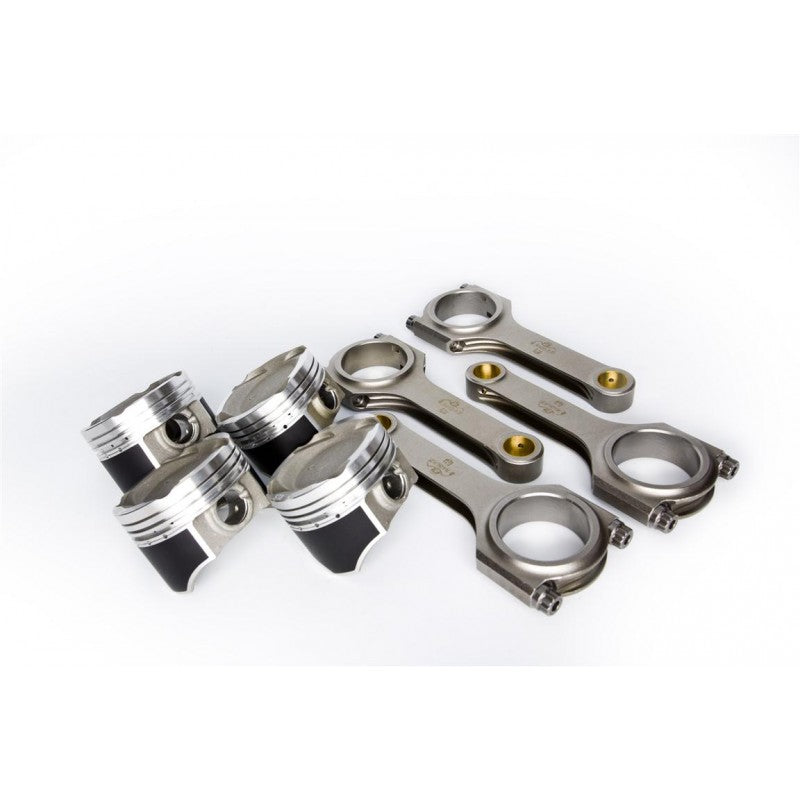

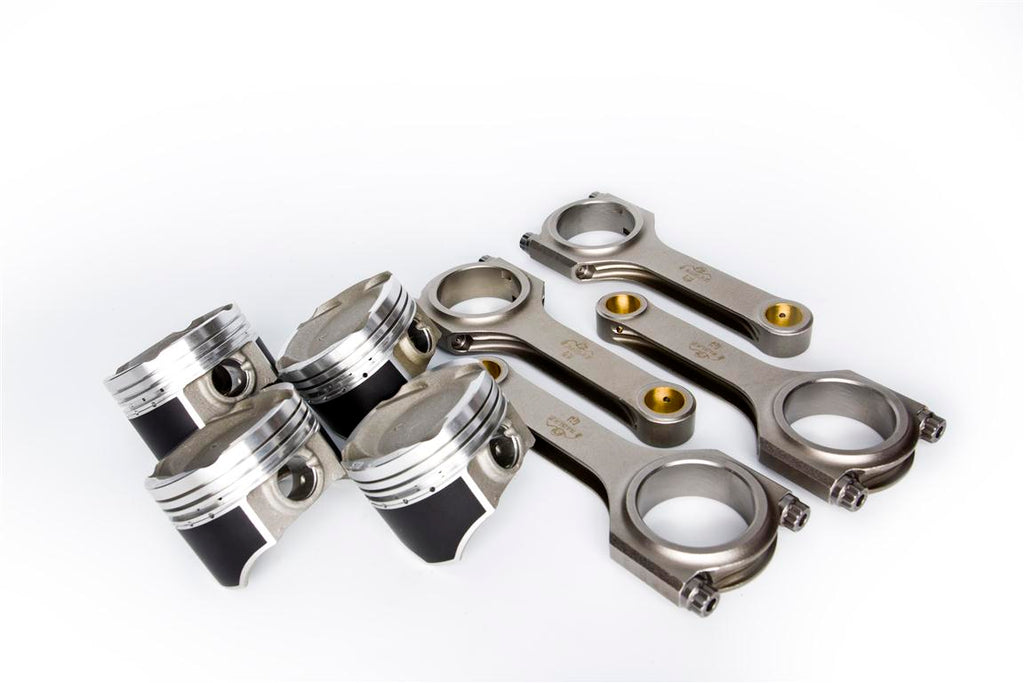

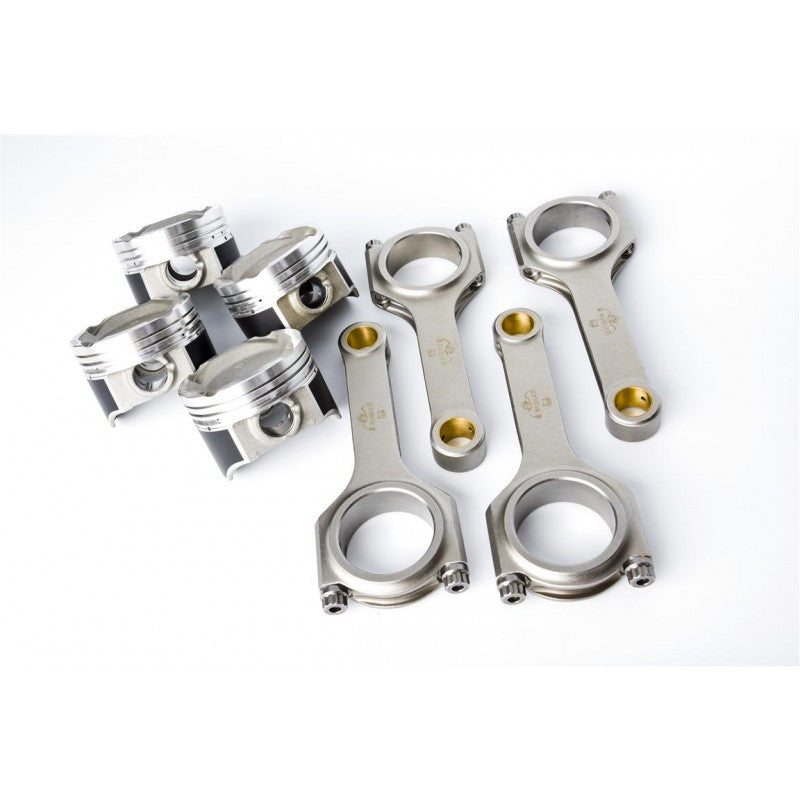

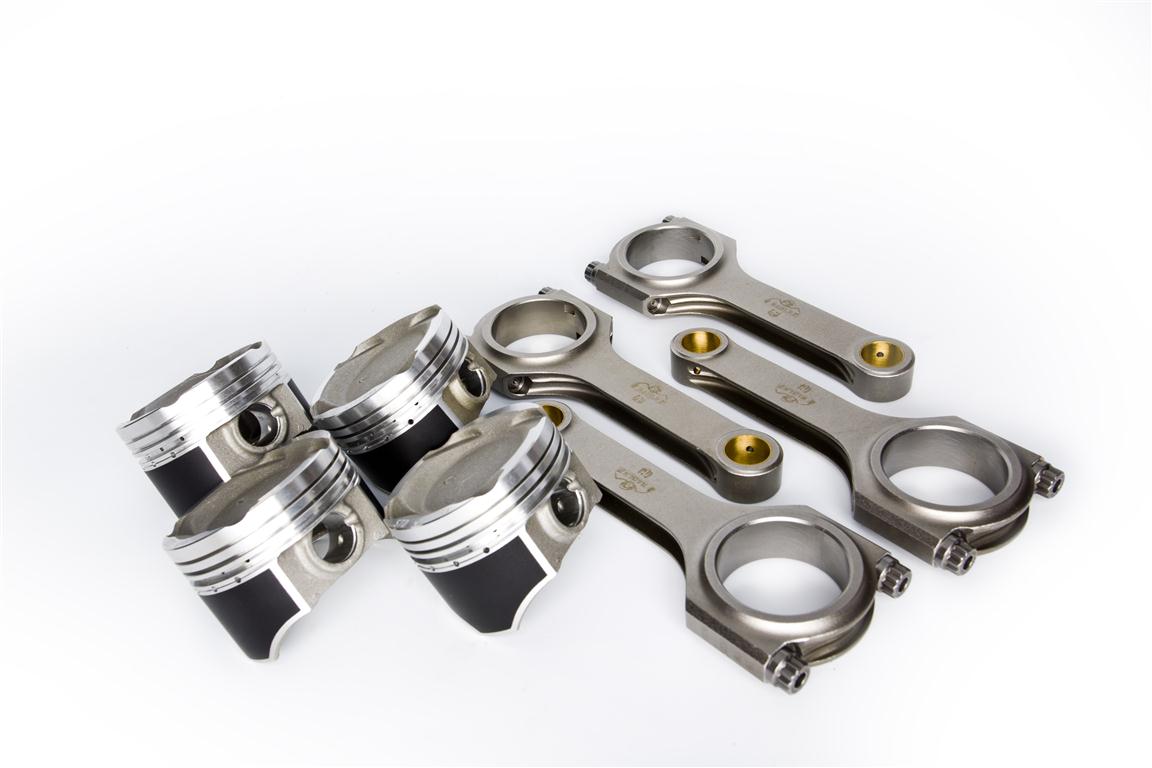

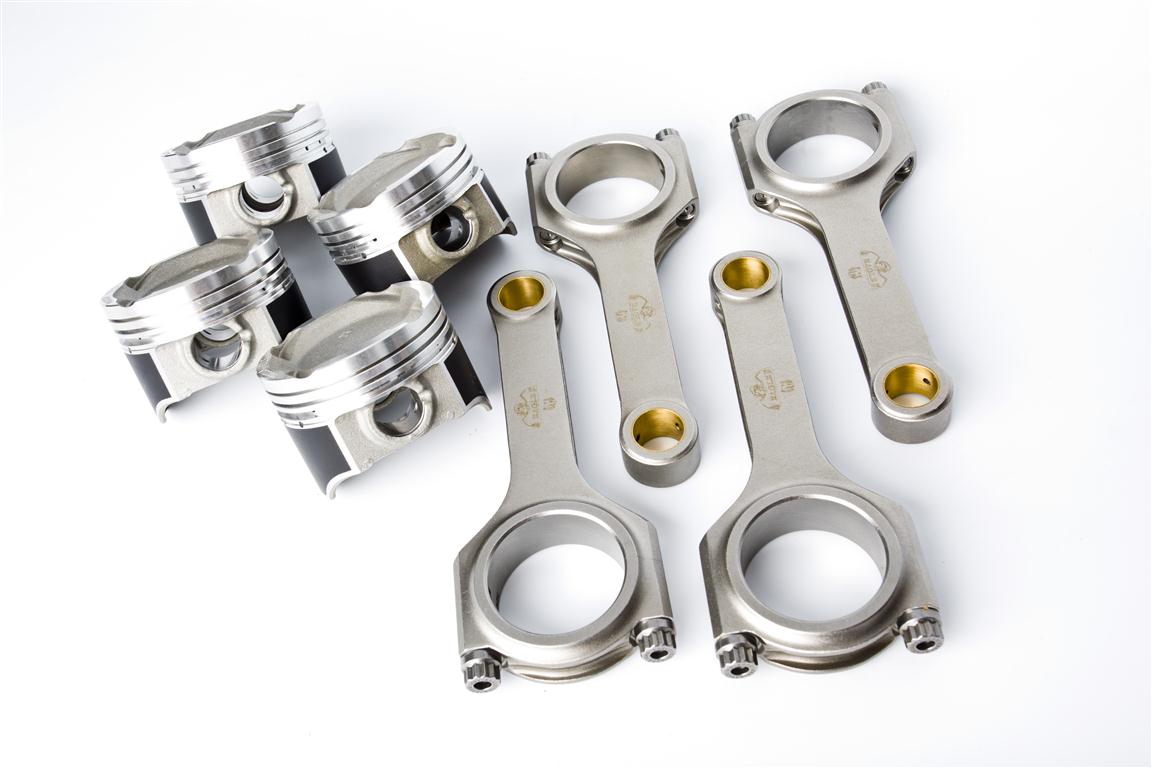

This is a combo kit for YCP Vitara Pistons & Eagle H Beam D16 Connecting Rods

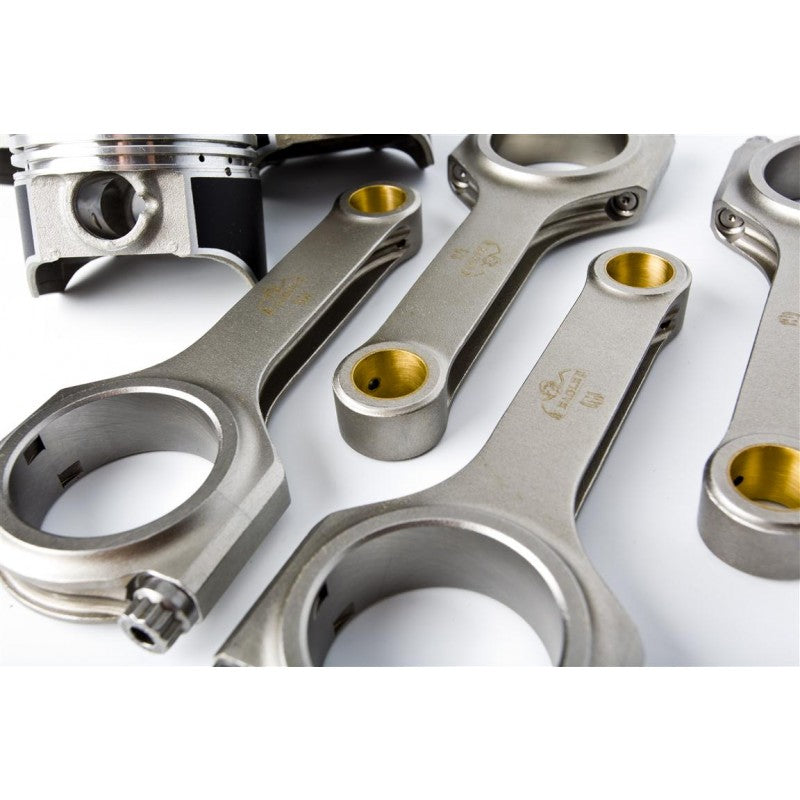

- Manley H Beam D16 Connecting Rods

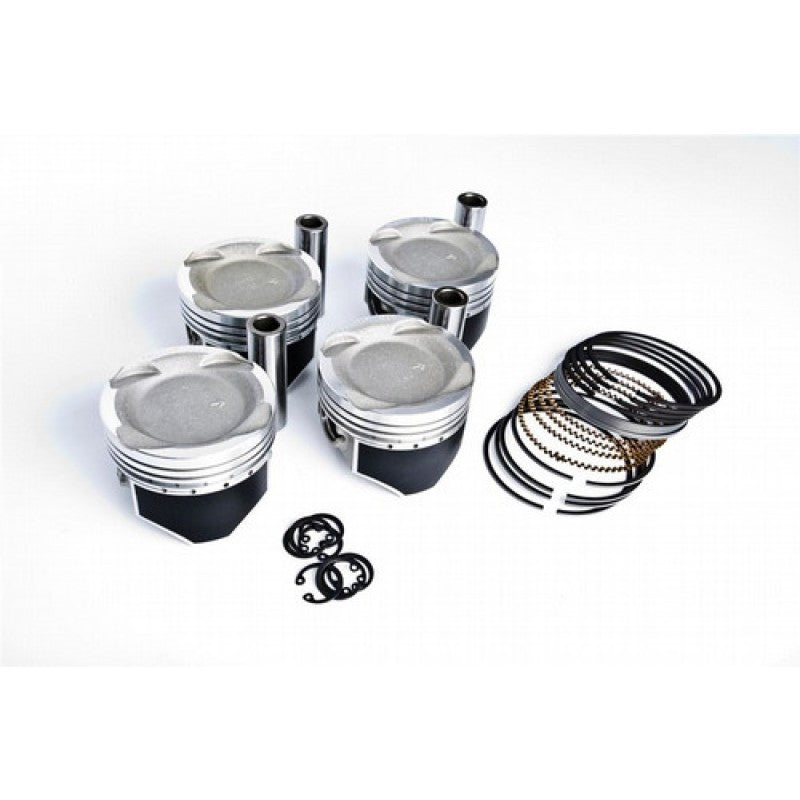

- 4 YCP Pistons, Pins, and Clips
- Complete Ring Set
Available in 75mm, 75.5mm, and 76mm Engine Bore Sizes.
We have pushed the limits of these pistons on our own engines and currently hold the world record for horsepower on these pistons in a stock sleeved D16Z6. We have used these in countless street engines that produced over 470HP on a street-able pump gas setup.
- YCP pistons are made from a much stronger casting than OEM pistons (AC8A Grade)
- 19mm floating wristpins fit aftermarket D16 forged connecting rods.
- T-6 Heat treated for greater strength.
- Highly resistant to heat.
- Dual oil holes provide superior wristpin lubrication
- Teflon coating provides increased piston life, improves cylinder sealing for less blow by and frees up more power from reduced friction.
*NOTE: We recommend installing pistons with the arrows pointing towards the flywheel side of the engine for correct valve relief orientation and piston pin offset.
RECOMMENDED PISTON AND RING CLEARANCES
Piston To Wall Clearance: .0025"
Top Piston Ring End Gap: .020" - .024"
Second Piston Ring End Gap: .020" - .024"
Oil Control Rings End Gap: .015" MINIMUM
