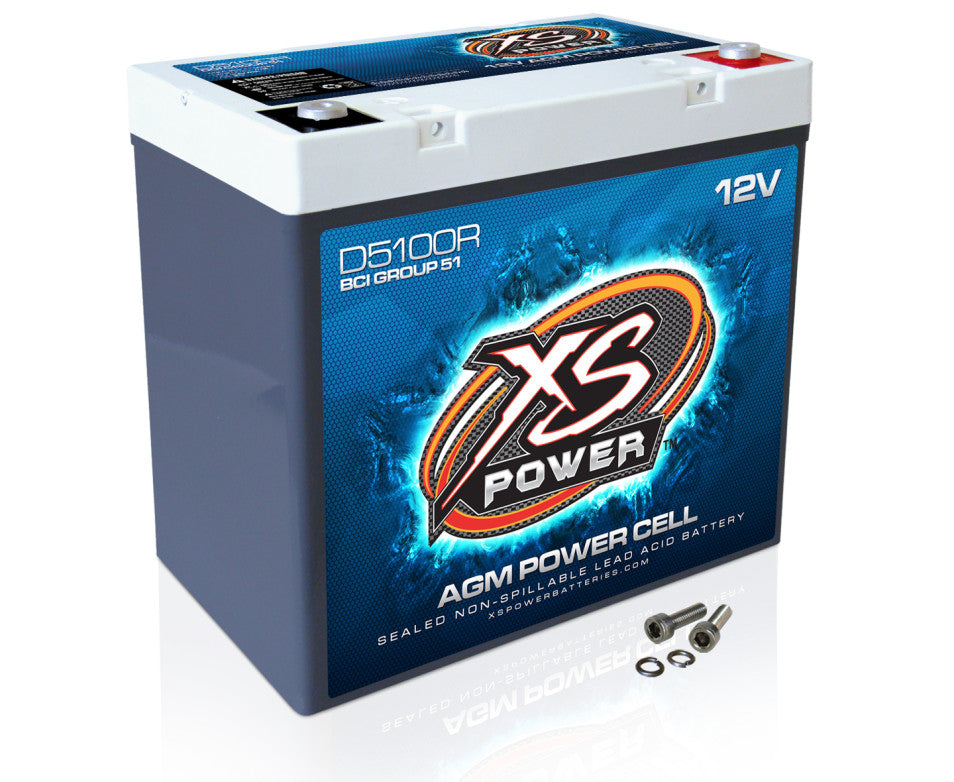

Overview: The XS Power D5100R is a 12-volt battery that is designed to be used as a supplemental power source in your vehicle, or it can replace your vehicle's OEM battery. It can supply the power needed to run your high-powered audio system, better than a standard battery.
Note: The D5100R is reverse polarity. For standard polarity, see D5100.
Terminals Needed: This D-series battery does not come with battery terminals, so you will need to purchase the proper terminal adapters for your application before installation can take place:
Car Stereo Installation: You will need terminal adapters that fit the inner diameter of your power ring terminals. Recommended terminal adapters include: Two 5/16" brass stud adapters (#589), Two 3/8" brass stud adapters (#590), Two 5/16" + Two 3/8" brass stud adapters (#588), or Two 3/8" zinc-plated steel stud adapters (#587). For dual-battery installations, a second battery install kit, such as the XS Power AK2500, can be used to connect the D5100R in parallel (+ to + and - to -) with the main battery.
OEM Battery Replacement: The D5100R fits the BCI Group 51 vehicle applications and will fit many small imported vehicle applications. If you are installing the battery under the hood or replacing your vehicle's OEM battery, you will need either the Short Brass Post Adapters (#580) or the Long Brass Post Adapters (#586) to connect your battery cables. The 5100 Billet Aluminum Hold Down (#548) can also be used to install the battery under the hood.
Absorbent Glass Mat (AGM): XS Power's AGM (Absorbent Glass Mat) batteries use a fibrous material to suspend the liquid electrolyte against the lead plates. Because the electrolyte is absorbed in the material, there is little chance of an acid leak, even in the event the case is ruptured. AGM batteries contain more lead compared to traditional "flooded" batteries, thus producing more power.
Specifications: The D5100R has the following specifications:
MAX Amps: 3100 amps
Cranking Amps (at 32°F): 745 amps
Reserve Capacity: 100 minutes
Discharge Capacity: 60 Ah (amp hours)
Dimensions: Length=9.04", Height=8.19", Width=5.43"
Weight: 39.6 pounds
