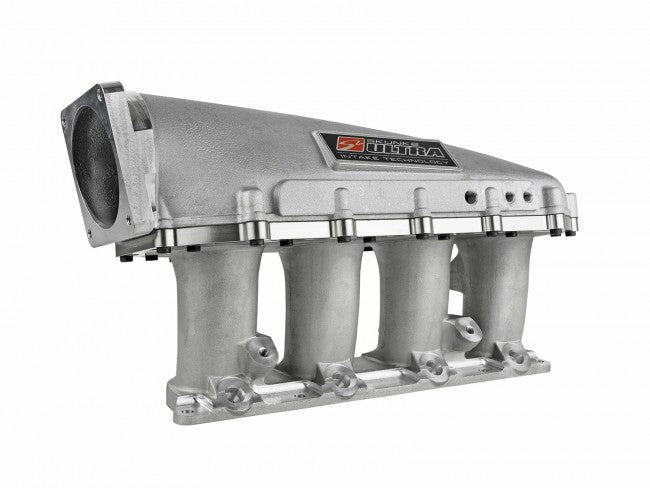

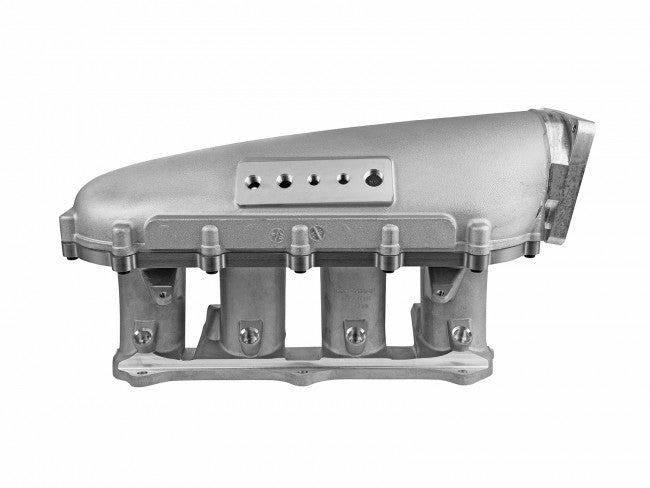

Skunk2 Ultra K-Series Race Intake Manifold (Silver, 3.5 Liters)
Building upon the performance legacy of our Pro Series Intake Manifold, as well as using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno and on-car testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Ultra Series Intake Manifolds are made from high-grade 356 aluminum alloy for a strong and lightweight design, CNC-machined for a precise fit, and individually inspected for quality assurance. The large 90mm throttle body opening, 87mm velocity stacks, and hi-velocity intake runners with smooth transitions allow the Ultra Series Manifold to outflow the competition. Designed to be used with built, high-horsepower naturally aspirated or forced induction setups, the Skunk2 Ultra Series Intake Manifold helps provide a new level affordable high-end intake technology to the marketplace.
Available in 3.5L (4.5L and 5.5L configuration require the purchase of optional spacers)
Optional Billet Aluminum Plenum Spacers in 1L or 2L sizes
Hi-Grade Mounting Hardware
6.5” Tilted & Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks - Plenty of Material to Port
Provisions for additional injectors on bottom side of runners
90mm Throttle Body Flange - Std. 5.0L Ford Pattern

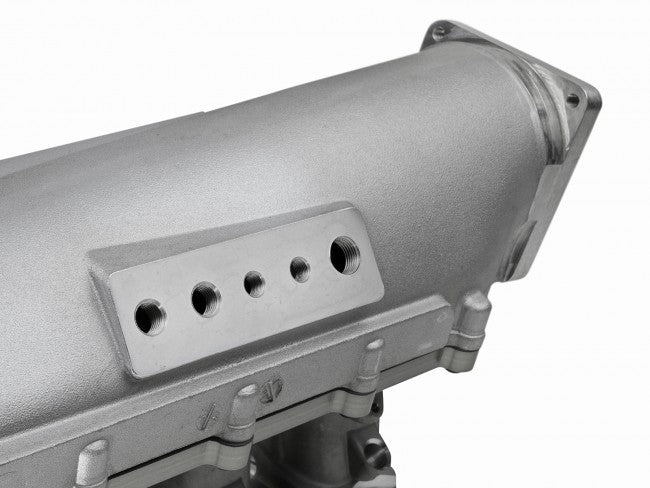

4 x 1/8” NPT, 3 x 1/4” NPT and 1 x OEM AIT Port

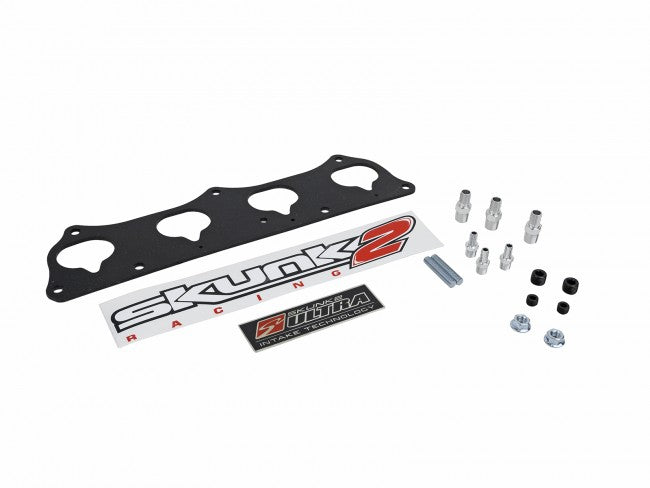

Includes Thermal Manifold Flange Gasket
Generously Cast Runner Walls for Porting
Fits ALL Popular Chassis Configurations - Not Just Race Cars
