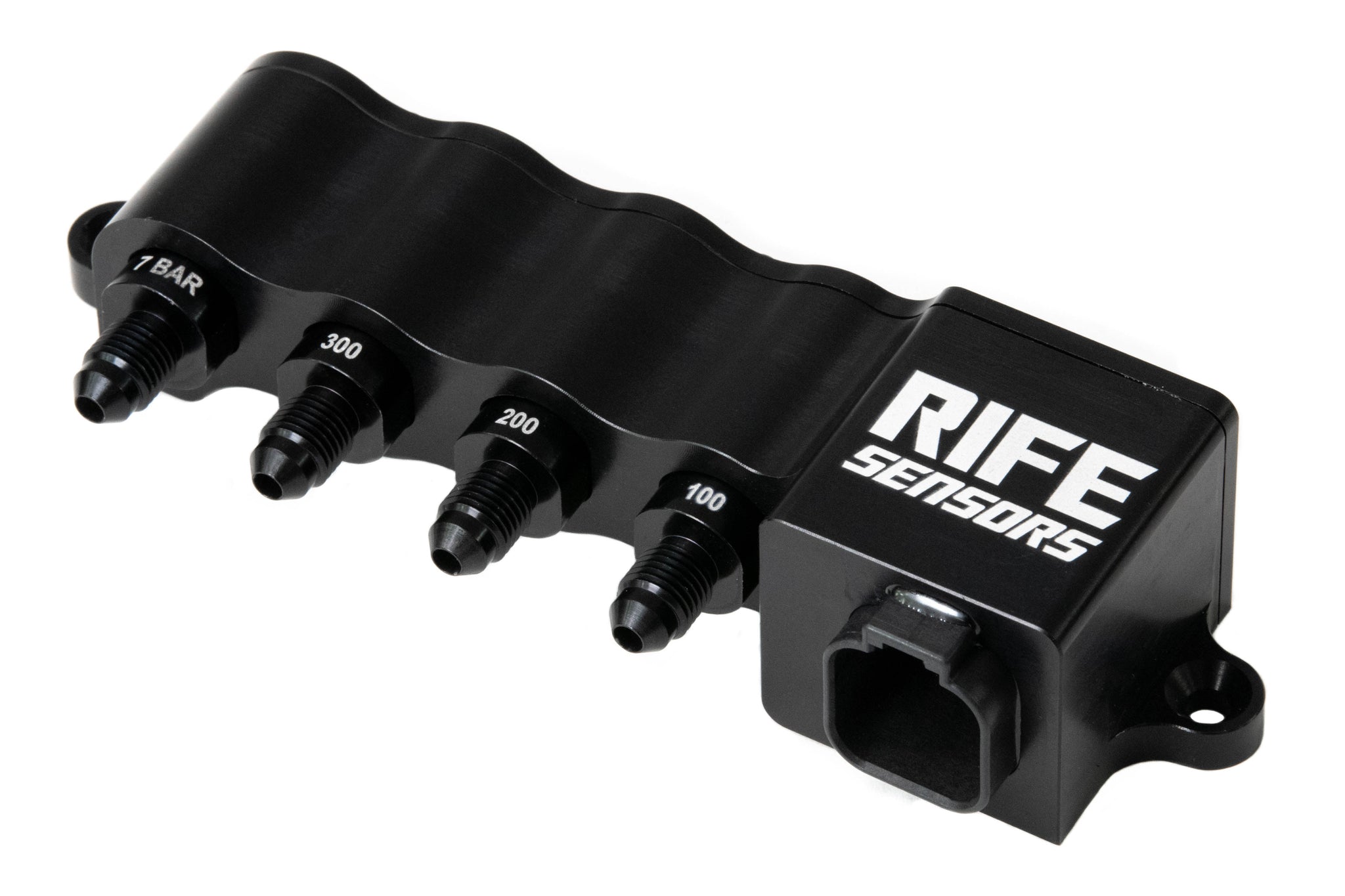

RIFE Quad Sensor Block (Choose Sensors)
Features
- Vibration Isolated Sensors
- 4 Built In Pressure/MAP Sensors (Choose Sensors and Thread Style In Options)
- -3 AN Male or 1/8" NPT Female connections
- Automotive Grade Deutsch DT connectors
- Sealed to IP69
- Billet aluminum construction
- Available in 1, 2, 3, or 4 sensor packages
- Custom configurations available
- Snubbers available to reduce damaging pressure spikes*
- Industry standard 0-5V output
- Compatible with all ECU’s/data loggers**
- Reduced wiring clutter
- Higher accuracy
- Faster response
- Flexible mounting options
- All wetted parts are 316 stainless, Viton or anodized aluminum
- Available sensor ranges
- 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
- 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

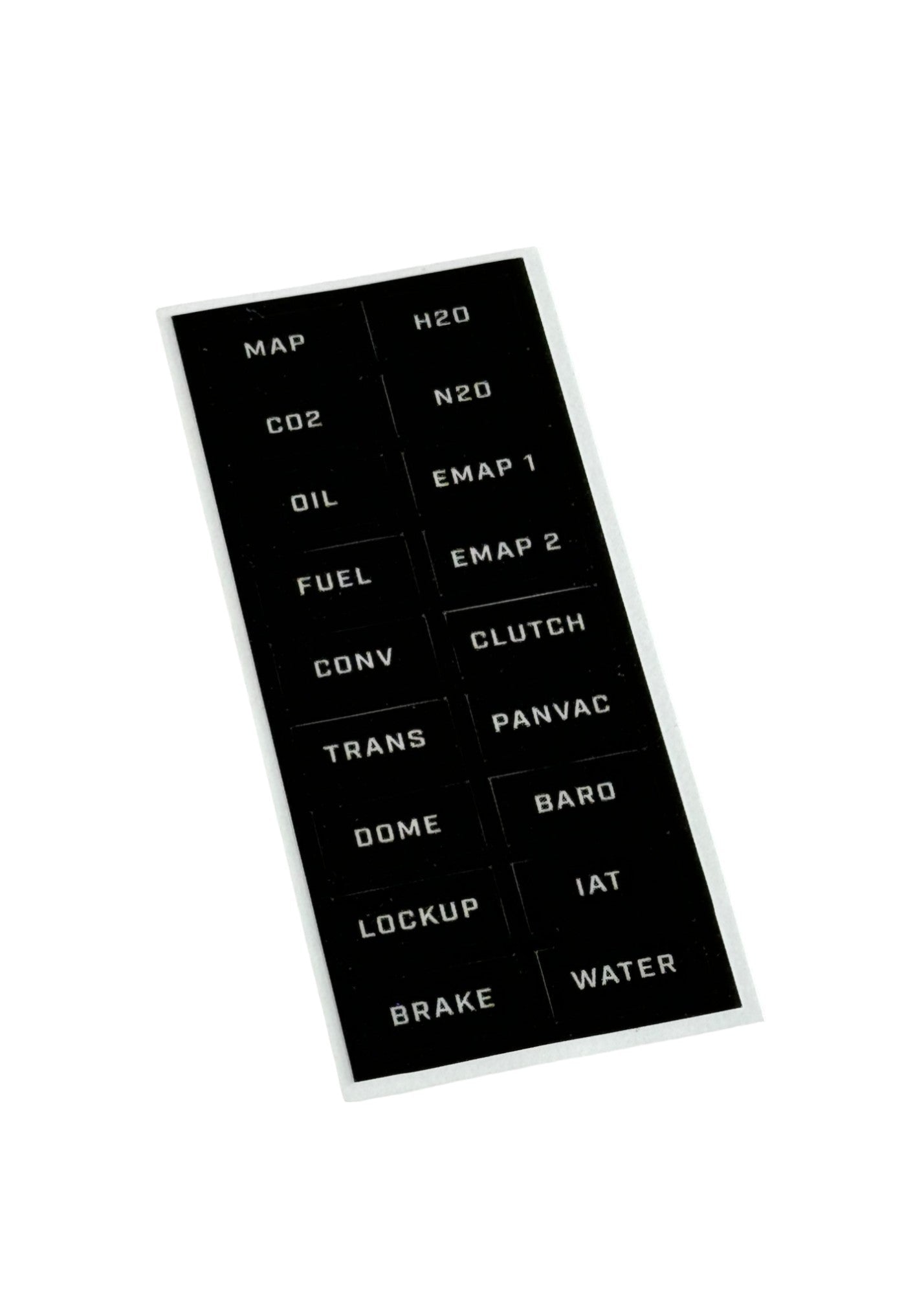

- Includes Label Sheet
*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.
*Does not include harness. Click here to order the harness
For Data and Scaling Info : Click Here
Watch this video on the internals and the unique features of this sensor solution!
