RIFE Hall Effect Speed Sensor / Wheel Speed Sensor 52-1043
Rife Sensors’ Hall Effect Speed Sensor is a true Zero-Speed, Low-Jitter, High-Accuracy sensor used for sensing ferrous targets, tone rings, or gear teeth.
Applications:
- Wheel Speed
- Driveshaft Speed
- Position Sensing
We are not recommending it for crankshaft or camshaft signaling.
Setup and Wiring Instructions: Click Here

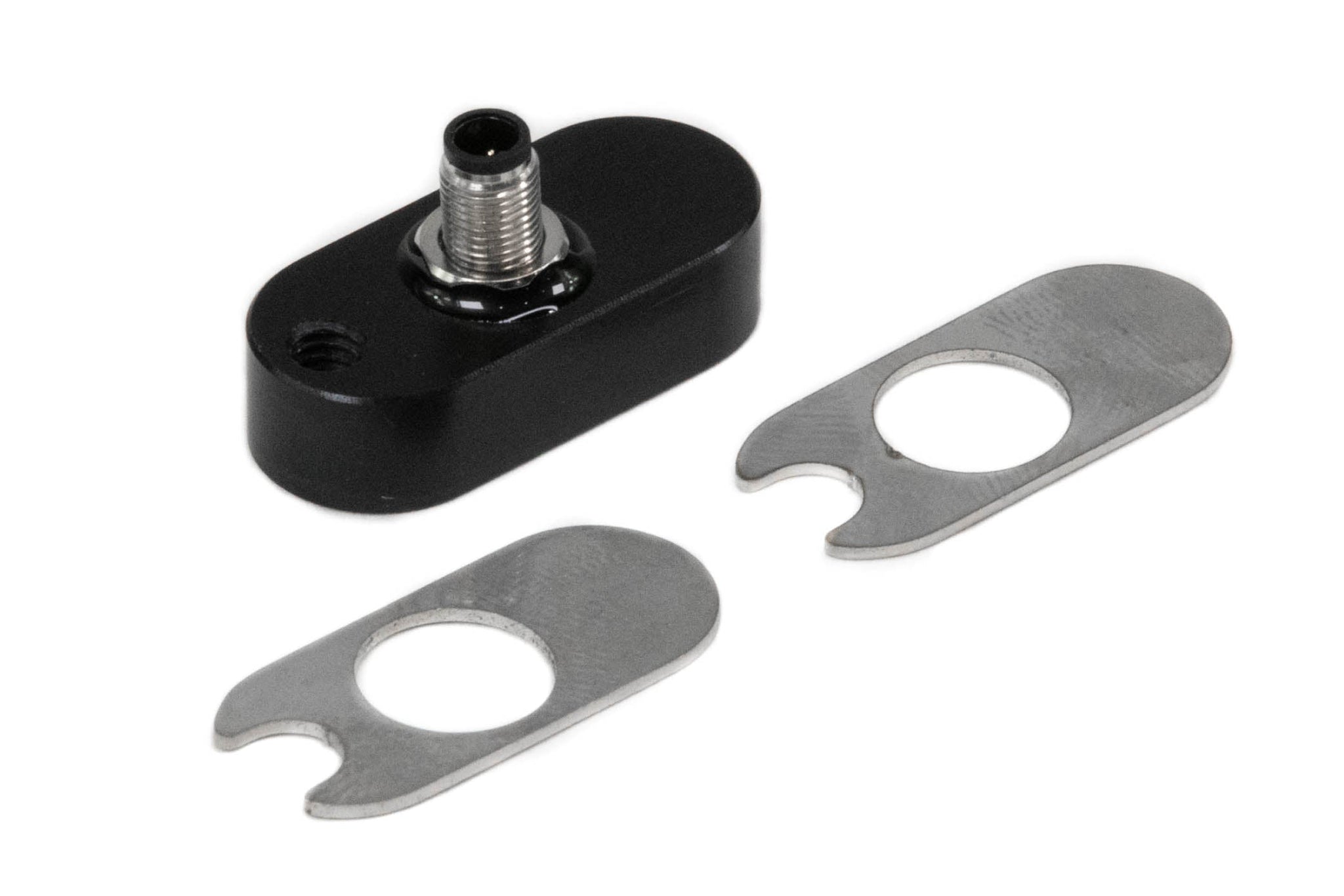

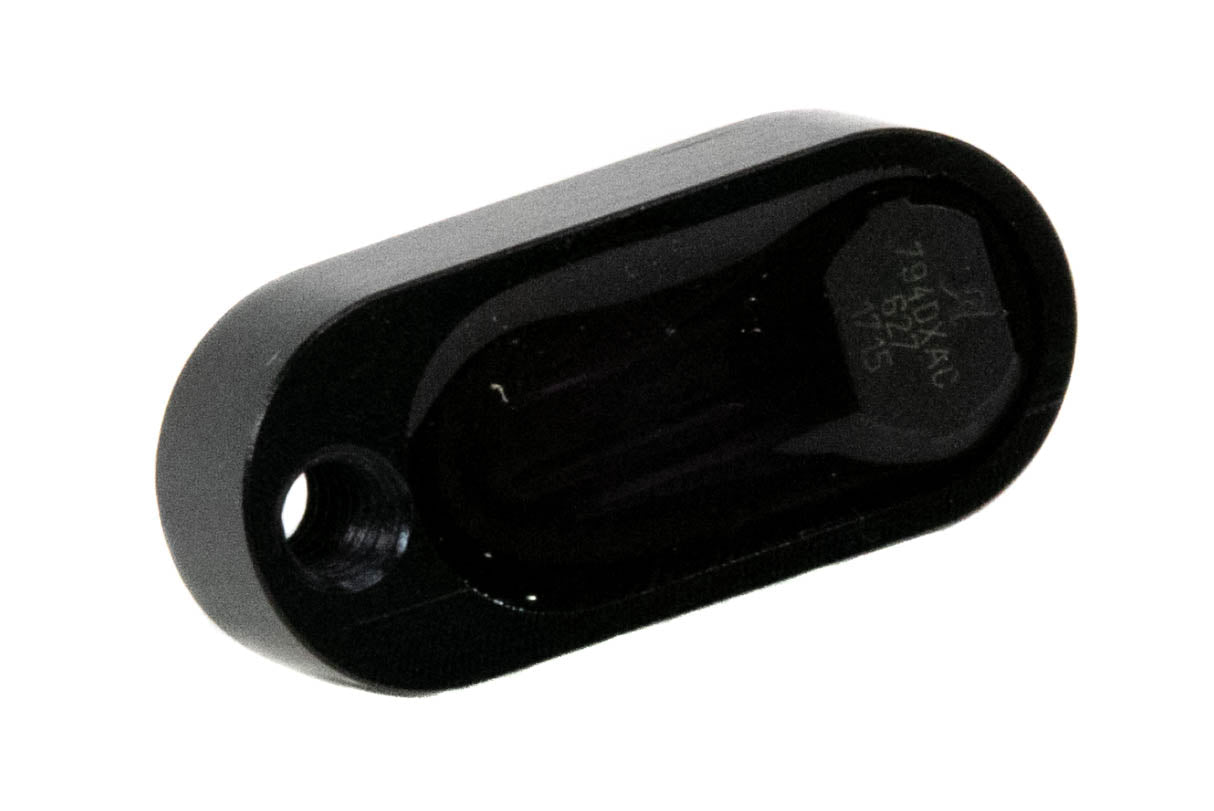

This Speed Sensor is packaged, along with the necessary electronics, in a billet aluminum housing and sealed with epoxy. All of the signal conditioning is done within the Sensor Body itself and requires no external configuration. The connector is a sealed M5 3-pin connector, cables are available through RIFE Sensors in a variety of configurations and lengths.
For M5 Cable Options Click Here: https://www.motionraceworks.com/collections/rife-m5-cables-and-accessories
DIY Finishing kit (Part# 52-1309) includes straight connector and adhesive heat-shrink for custom length cables (soldering required): Click Here
If removing or changing an end on this cable to adapt to a non standard m5 connector the wire colors / pinouts are as follows so long as you are using RIFE supplied M5 cables
Brown: Signal Out
Black: Sensor Power
Blue: Sensor Ground
