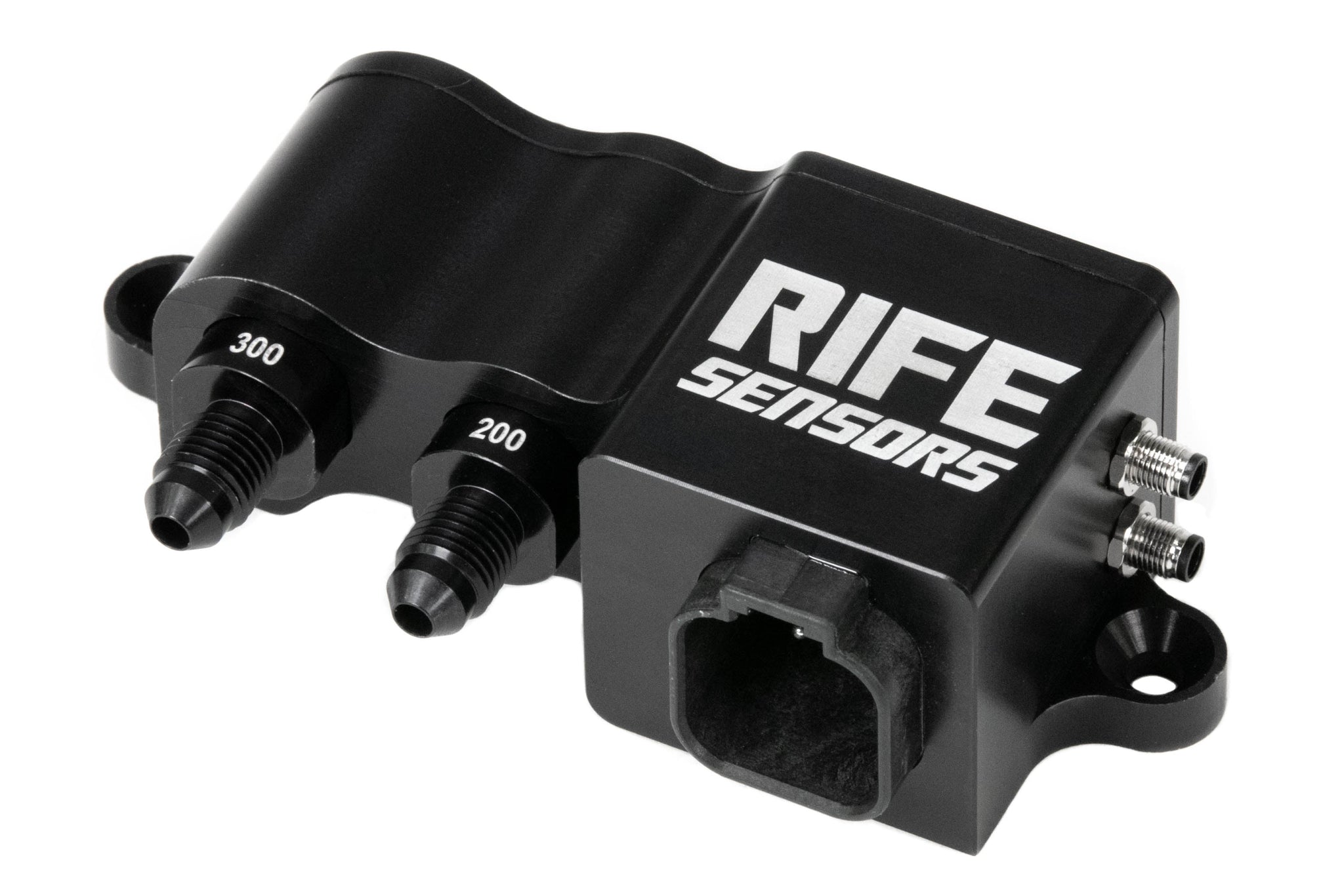

RIFE Double Sensor Block + 2 M5 Inputs (Choose Sensors)

Available for Order


RIFE Double Sensor Block + 2 M5 Inputs (Choose Sensors)

RIFE Double Sensor Block + 2 M5 Inputs (Choose Sensors)

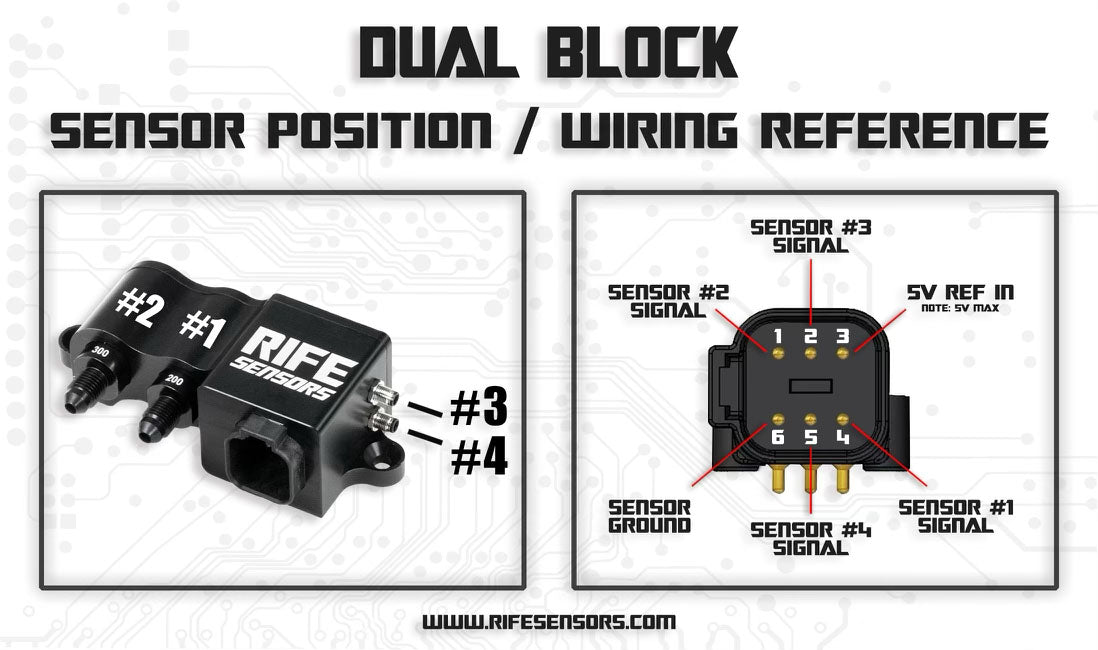

Dual RIFE sensor Wiring and Sensor Location Chart

2 Pressure/MAP Sensors, 2 expandable M5 inputs, one wiring plug

These are built to order for your specific vehicle

This block includes 3 additional Analog inputs! These side mounted M5 analog inputs can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector

RIFE Sensor Blocks Feature:

  • 2 Built in Pressure/MAP Sensors (Choose sensors and Thread Style in Options)
  • 2 expandable M5 inputs for external 3 wire 5v sensor
  • Higher accuracy
  • Faster response
  • One distributed sensor Ground feeds up to 4 sensors
  • One distributed sensor Power feeds up to 4 sensors
  • Sensor Power/Ground are circuit protected
  • Dual Vibration isolated sensors
  • Choose -3 AN Male or 1/8" NPT Female connections
  • Deutsch DT 6 pin connector
  • Sealed to IP69
  • Billet aluminum construction
  • Sensors Utilize Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers

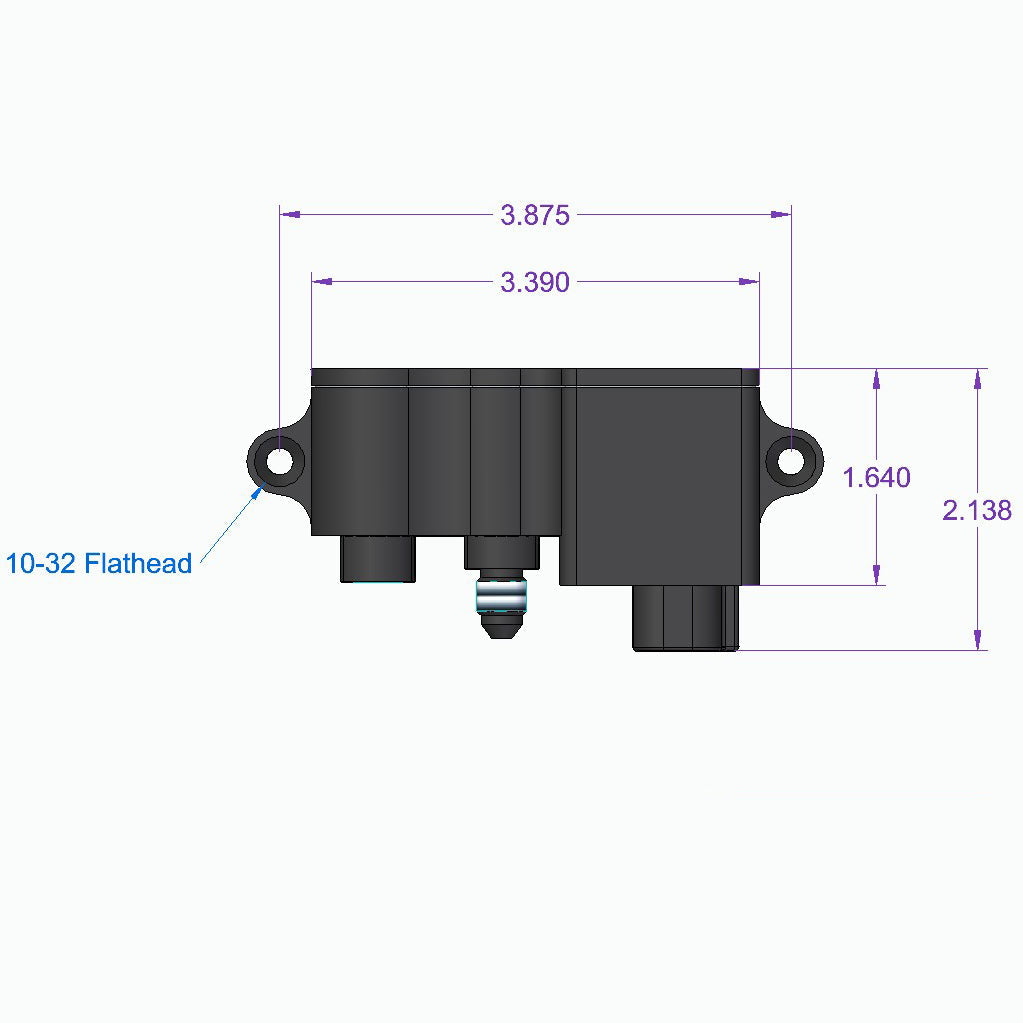

  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
  • 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
  • Compatible with Oil, Fuel (Gasoline and Methanol), Transmission Fluid, CO2, Compressed Air, Water, Coolant and more!

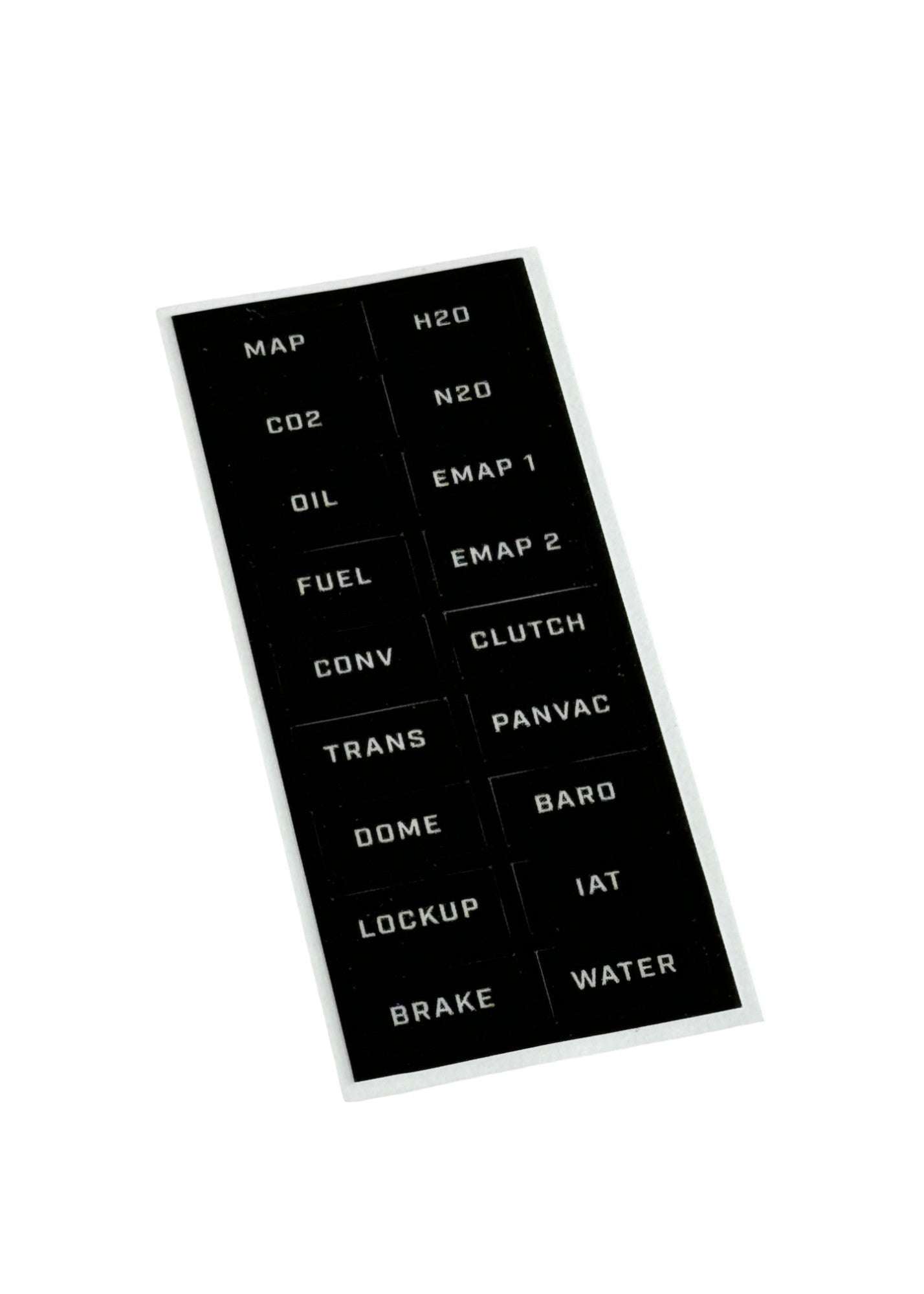

  • Includes Label Sheet
  • *Does not include harness. Click here to order the harness

    For replacement sensor pods: Click Here

    For M5 Cable Options: Click Here

     *Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

For Sensor Scaling Data: Click Here

Watch this video on the internals and the unique features of this sensor solution!

Learn how to swap sensors in your RIFE block
