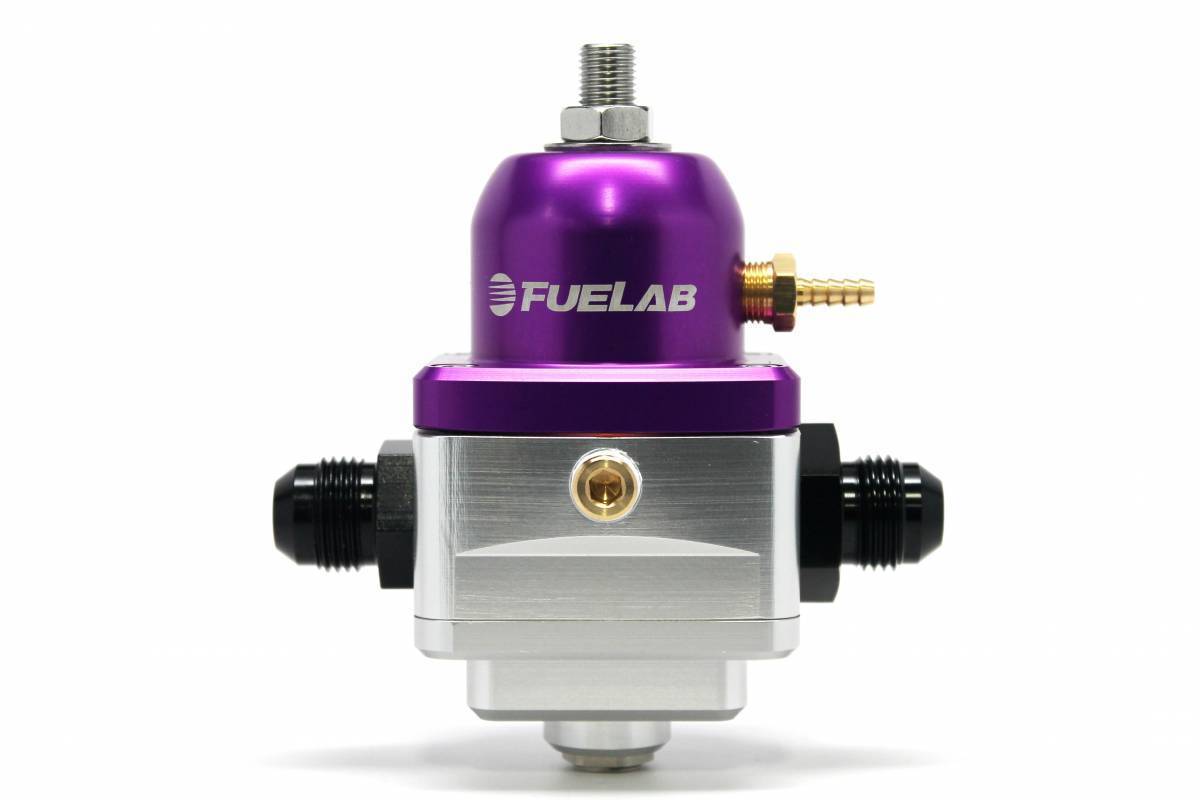

Regulator Adjustable Electronic (1) -8 inlet (1) -8 return Purple FUELAB

8AN Inlet/Outlet / Standard Seat / EFI (25-90 PSID)

Regulator Features

• Purple
• Works with FUELAB Prodigy fuel pumps (41401,41402,41403,42401 and 42402)
• Now compatible with 617xx Series FST, 939xx Series and 72002 Fuel Pump Controller
• Patented method for demand based flow control, able to detect changes in demand before change in rail pressure is realized. U.S. Patent 7,810,470
• Automatically reduces current draw at low flow demand
• Additional analog output to track actual fuel system capacity
• Get the quick response of a mechanically regulated system, with the advantage of electronic flow control
• Independent system, no other connections, control boxes or calibration required.
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• Fine thread pitch for precise pressure adjustment
• Versatile mounting bracket and stainless steel hardware
• 1/8 inch NPT gauge port with plug for external pressure gauge
• 1/8 inch NPT pressure reference port with barbed fitting
• Backed by a limited lifetime warranty
