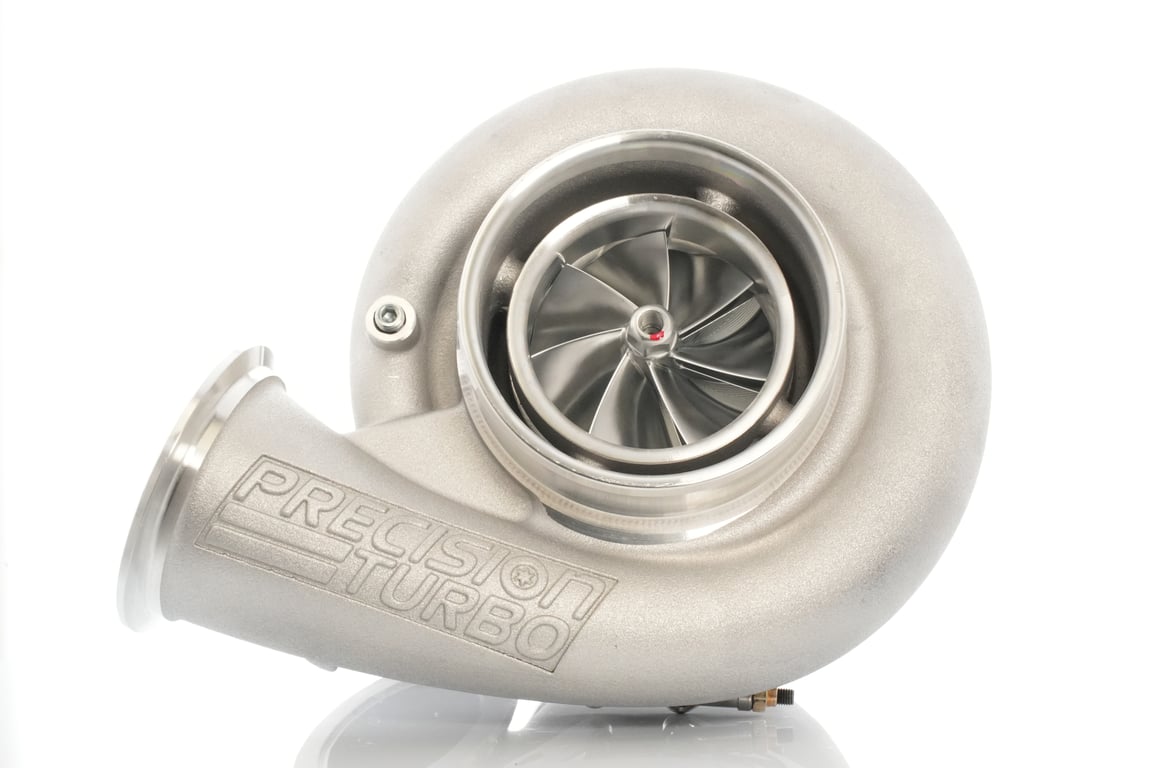

Precision Turbo Next Gen PT8685 Turbocharger
HP Rating: 1800hp
- Add TEXT:
- Proven to provide a 15% improvement over previous gen
Features:
- Most powerful 86mm turbocharger in the market.
- Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.
- All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios.
- Compressor Cover Includes Machined Speed Sensor port (sensor not included).
- Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity.
- High Flow 11 blade turbine wheel design featuring high temperature resistant Alloy.
- Class Legal for several racing sanctions. Contact us for any class legal consultation.
Specifications:
- Compressor Wheel Inducer: 86mm
- Compressor Wheel Exducer: 115mm
- Turbine Wheel Inducer: 90mm
- Turbine Wheel Exducer: 85mm
- Recommended Max Turbocharger Speed: 116,000 RPM
Options:
- Speed sensor (OPTIONAL) / Part #: pel015-9500
- Speed Sensor provision INCLUDED
- Safety blanket (OPTIONAL) / Part #: THR-04
