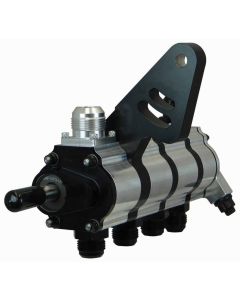

Dry Sump Pump, Tri-Lobe, Passenger, Right Side Motor Plate Mount, 4 Stage, 1.200 Pressure

OIL PUMP FOUR STAGE, RIGHT SIDE DRAGSTER CAR BRACKET

• Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at the highest RPM's
• 1.200 Spur gear pressure section based off Moroso's highly successful billet wet sump pump design
• Variable spring rates optimize your oil pressure for smooth, reliable oil pressure readings
• Pump weighs almost half of gerotor pumps, and takes up to 40% less power to drive but still makes big crankcase vacuum
• Includes replaceable fittings; Pressure Section -12AN Inlet, -12AN Outlet, Scavenge Inlets -12AN, Return -16AN
• Door Car Style Bracket
• · We took our best performing dry sump pump line and re-engineered the bracket so now Moroso has a line of dry sump pumps for applications that require the pump to be on the right side of the engine
• · Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at the highest of RPM’s
• · Spur gear pressure section based off Moroso’s billet wet sump pump design
• · Variable spring rates optimize your oil pressure for smooth, reliable oil pressure readings
• · Saves weight and make big crankcase vacuum
• · Multiple #16 scavenge outlet options for increased flow back to your dry sump tank and/or fitment requirement on your application
• · Pumps weights almost half of gerotor pumps, and takes up to 40% less power to drive
• · Includes all necessary fittings
• PART # DESCRIPTION
• 22321 Dry Sump Pump Single Stage, Right Side Bracket, 1.200 Pressure/1.700 Scavenge
• 22323 Dry Sump Pump Three Stage, Right Side Bracket, .900 Pressure/1.700 Scavenge
• 22324 Dry Sump Pump Four Stage, Right Side Bracket, .900 Pressure/1.700 Scavenge
• 22325 Dry Sump Pump Five Stage, Right Side Bracket, .900 Pressure/1.700 Scavenge
• 22326 Dry Sump Pump Six Stage, Right Side Bracket, .900 Pressure/1.700 Scavenge

Manufacturer-listed related parts and options:

Part # AVAILABLE OPTION
62208 Dry Sump/External Oil Pump Drive for a 5/8" Diameter Shaft
Part # REPLACEMENT FITTINGS
22741 Replacement Fitting, -10AN
22742 Replacement Fitting, -12AN
22743 Replacement Fitting, -16AN
22744 Replacement Fitting, -16AN with a -12AN
