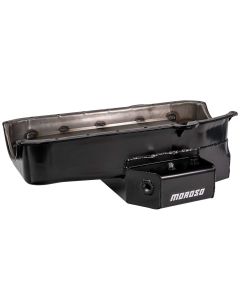

Oil Pan, SBC 86-Up With 1 Piece Seal, Low Ground Clearance, Road Race Baffled, 7 In. Deep

Oil Pan, SBC, 1-Pc Seal, 7" Deep, Baffled for Road Race, makes an excellent Drag Race Oil Pan for C-4 Corvette and other low ground clearance appl. Works up to a 4.125" stroke w/steel rods, 20mm oil warning sender.

• Steel, Wet Sump, 7 Quart Capacity, 7" deep Sump, Road Race Baffled
• Engine Application: SBC ‘86& Up engine blocks with 1 piece seal/passenger side dipstick
• Fits: C-3 & C-4 Corvettes, Kit Cars and other low ground clearance applications
• Clears 4.125" stroke with most steel rods
• Fits 4 bolt Dart, GM and Merlin main caps
• 5 trap door baffles for oil control in Road Racing, also an excellent Drag Race pan
• Has a built-in crank scraper, removable louvered windage tray for horsepower
• Rear Sump is 7" deep, 13-3/4" wide and 12" long
• 20mm fitting for oil level sensor, optional 20mm plug No. 22738 available for use when the factory low warning sensor is not going to be utilized
• Use stock dipstick; also has a 1/4" NPT fitting for Moroso Universal Dipsticks Nos. 25970, 25971 & 25973
• Steel with black powder coat finish
• Compatible with most starter/flywheel combinations

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24811 Fits: M55 style Standard Volume Oil Pump in Moroso Part No. 21811 and No. 21812
24814 Fits: M55HV style High Volume Oil Pump in Moroso Part No. 21811 and No. 21812
24817 Fits: M155HV style Pumps, 7” deep pans Moroso Part No. 21811, 21812 and 21816
24819 Fits: M10552/M10555 style Pumps, 7” deep pans Moroso Part No. 21811, 21812 and 21816
Part # AVAILABLE OIL PAN OPTION
22738 Plug, 20mm x 1.5, Male with Copper Washer
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38551 Oil Pan Flange Head Bolts, SBC
93151 Oil Pan Gasket, ‘86-up block with a 1 piece rear main seal
24811 Fits: M55 style Standard Volume Oil Pump in Moroso Part No. 21811 and No. 21812
24814 Fits: M55HV style High Volume Oil Pump in Moroso Part No. 21811 and No. 21812
Part # AVAILABLE OIL PAN OPTION
22738 Plug, 20mm x 1.5, Male with Copper Washer
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
93151 Oil Pan Gasket, ‘86-up block with a 1 piece rear main seal
