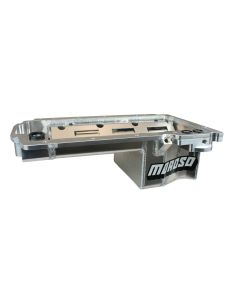

Oil Pan, GM Lv1 Lv3 Rear Sump, 6 In Deep, Road Race Baffle

Oil Pan, GM 4.3 Liter V6 EcoTec3 LV1 Rear Sump, 6 IN Deep, Road Race Baffled

• Aluminum Wet Sump, 7 Quart Capacity, 6" Deep
• Engine Application: GM 4.3 V6 Ecotec3 LV1
• Fits: ‘67-'92,’10-up Camaro,’68-'78 Nova, ‘65-'72 Chevelle,‘78-'88 G-Body and GM S10/S15 Two Wheel
• Drive Blazer/Truck. Can also be used in additional applications; check dimensions for clearance)
• Due to the O.E.M. GM 4.3 V6 Ecotec3 LVI oil pans having the oil pump pickup built into the oil pan, our oil pan
• has a thick billet aluminum O-ringed rail that incorporates a removable pickup, a billet front sump and a
• location to mount our billet aluminum spin-on oil filter adapter
• Fabricated aluminum construction is more adaptable to add fittings, change finishes and weighs less than
• cast aluminum construction
• Features a race proven diamond shape four trap door assembly, removable windage tray and anti-slosh baffle
• that keeps oil contained in oil pump pickup area during Road Racing, Drifting and Drag Racing
• Includes a billet aluminum Spin-On oil filter adapter with a 1/4" N.P.T. sensor port that accepts a 22 mm
• thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
• The included dipstick bung is designed to be use with GM Part # 12652951 Dipstick Tube and 12643278
• Dipstick
