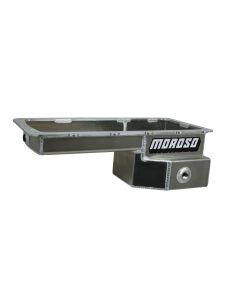

Oil Pan,Ford 5.0 Coyote, Road Race Baffled,Rear T-Sump, Fox Swap, Aluminum

Oil Pan, Ford 5.0 COYOTE, Fox Body Mustang 79-93 and other Fox Body chassis with Ford "Coyote" Engines, Fully Fabbed Alum., Road Race Baffling, 1/2" NPT fittings for oil temp. sender and supercharger drainback, 20 mm fitting for the factory oil level sensor

• Aluminum, Wet Sump, 7.5 Quart Capacity, 6-5/8" Deep
• Engine Application: Ford 5.0 Coyote
• Fits: '79-'93 Mustang with 5.0 Coyote/5.2 Voodoo swaps using BBK or American Racing Headers
• Pan has a thick aluminum billet rail
• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
• Aluminum with a clear zinc finish
• Features a race proven trap, door assembly and anti-slosh baffle that keeps oil contained in the oil pump pickup area during road racing and street/strip usage
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 Coyote/Voodoo engines use Part No. 24578
• *If the factory low oil warning sensor is not going to be used, Part No. 22738 20 mm Plug with cooper washer is available

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24578 GEN III Oil Pump Pickup-FITS: 5.0 Ford Coyote& 5.2 Voodoo
Part # AVAILABLE OIL PAN OPTIONS
22936 Windage Tray & Oil Pan Gasket, Ford 5.2 Voodoo, with modifications
22738 Factory Low Warning Sensor Plug, 20mm
22203 Standard Volume, Oil Pump
