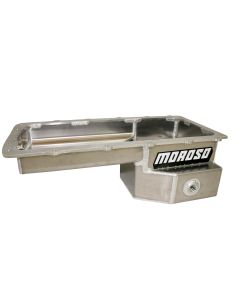

Oil Pan, Ford 5.0 Coyote, Drag Race Baffled, Rear T-Sump

Oil Pan, Ford 5.0 COYOTE, Mustang, 94-Up and other rear sump Fords with Ford "Coyote" Engines, Fully Fabbed Alum., Drag Race Baffling, 1/2" NPT fittings for oil temp. sender and supercharger drainback, 20 mm fitting for the factory oil level sensor

• Aluminum, Wet Sump, 9 Quart Capacity, 6-5/8" Deep
• Engine Application: Ford 5.0 Modular "Coyote" Engines
• Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" Engines, check measurements
• Oil pan has a thick aluminum rail with a fabricated aluminum sump
• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
• Features a Drag Race proven trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during launches and deceleration
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• *If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24574 Fits: Moroso Part No. 22203, Factory 5.0”Coyote”/5.2 Voodoo Gen 1 & 2 Oil Pumps
24579 Fits: Factory 5.0/5.2 Gen 3 Oil Pumps
Part # AVAILABLE OIL PAN OPTIONS
22936 Windage Tray & Oil Pan Gasket, Ford 5.2 Voodoo, with modifications
22738 Factory Low Warning Sensor Plug, 20mm
22203 Standard Volume, Oil Pump
