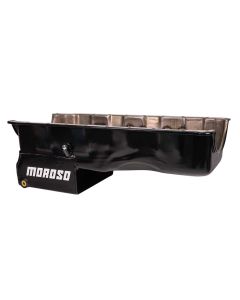

Oil Pan, BBC Gen V / Vi , 8 In Deep, Windage Tray, No Scraper
Oil Pan BBC GEN V/VI ; Steel, Black Powder Coat, With Flat Sides, Trap Door Baffles, Windage Tray
- Steel, Wet Sump, 7 Quart Capacity, 8" Deep, 8.75" Sump Length
- Engine Application: Gen V and Gen VI
- Fits: COPO Camaro '16-Up Most Chassis (except 1962-'67 Chevy II, V-8 Vega/Monza, and 1955-'57 Chevy)
- Clears 4.375" stroke with most steel rods
- Steel with black powder coat finish by Moroso Powder Coating
- Integrated trap door and windage screen for improved oil control
- Sump features flat sides for increased header clearance and deceleration
Manufacturer-listed related parts and options:
PART # RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
*Offset to middle of sump for more consistent oil pressure under braking
PART # OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
PART # AVAILABLE OPTIONS
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC & Pontiac V8
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93154 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Gen 5 & 6
