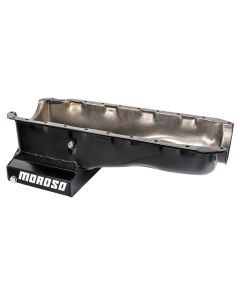

Deep Sump Oil Pan; 6 Qt.; Wet Sump; Depth-8 in.; Trap Door Baffling; Incl. Mag. Drain Plug; Chevy Big Block; Steel, Black Powder Coat
- Wet Sump, 6 Quart Capacity, 8" Deep
- Engine Application: Mark IV style (except Gen V and Gen VI)
- Fits: Most chassis including 1965-'72 Chevelle, Cutlass, Skylark , Tempest and GTO, except 1962-'67 Chevy II, V8 Vega/Monza and 1955-'57 Chevy
- Fits rear-steer GM A-Body cars
- Rear sump has been shortened 1.25" for additional cross-member clearance
- Trap door baffling for improved oil control
- Clears 4.25" stroke with most steel rods and 4.090" stroke with most aluminum rods
- Compatible with most starter/flywheel combinations
- Black powder coat finish by Moroso Powder Coating
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22175 Fits: Moroso Standard Volume Package
22185 Fits: Moroso High Volume Package
22186* Fits: Moroso High Volume Package with Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
Part # AVAILABLE OIL PAN OPTIONS
23010 Oil Pan Baffle
23030 Windage Tray
25830 Crank Scraper
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC & Pontiac V8
93153 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Mark 4, notched for stroker cranks
