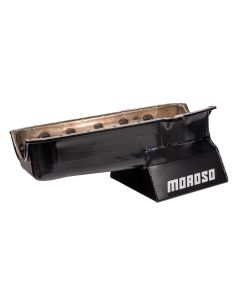

Oil Pan, SBC Pre- 80 Driver'S Side Dipstick, 8.25 In. Deep T-Sump
Kicked Out Sump Oil Pan; 7 Qt.; Wet Sump; Trapdoor Baffling; Integral Crank Scraper; Uni-Directional Windage Tray Screen; Chevy Small Block; Steel; Black Powder Coat finish
- Steel, Wet Sump, 7 Quart Capacity, 8-1/4" deep
- Fits: Most Chassis (except 1962-'67 Chevy II, V8 Vega and Monza)
- Accepts up to 4.125" stroke with steel rods
- Fits 4 bolt Dart, GM and Merlin main caps
- Kicked-out sump
- Crank scraper welded to pan
- Uni-directional windage tray screen
- Trap door baffle for improved oil control
- Will clear most stock manifolds, Borla®, Hedman® and Hooker® headers
- Compatible with most starter/flywheel combinations
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: Moroso SBC ¾” Inlet, M10552/M10555 Style Pumps
24350 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320 Fits: Moroso BBC Race Pump No. 22150 or M77HV style pump
24360 Fits: M155HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146 Moroso High Volume Package w/ 3⁄4" dia. inlet
22139 Moroso High Volume with Anti-Cavitation Grooves Package
22171 Moroso Billet Aluminum Oil Pump
Part # AVAILABLE OIL PAN OPTIONS
23000 Oil Pan Baffle
38551 Oil Pan Flange Head Bolts, SBC
93150 Oil Pan Gasket, Pre-‘85 block with a 2 piece rear main seal
