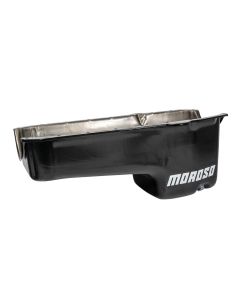

Oil Pan, SBC 86-Up With 1 Piece Seal Passenger Side Dip Stick, 8.25 In. Deep
Deep Sump Oil Pan; Blocks w/1 pc. Rear Main Seal; 6 Quart; Trapdoor Baffling; Steel; Black Powder Coat finish
- Wet Sump, 6 Quart Capacity, 8-1/4" deep
- Fits: Most chassis (except 1962-67 Chevy II, V8 Vega and Monza)
- Clears 4.125” stroke with most steel rods
- Fits 4 bolt Dart GM and Merlin main caps
- Trap door baffle for improved oil control
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: Moroso SBC ¾” Inlet, M10552/M10555 Style Pumps
24350 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320 Fits: Moroso BBC Race Pump No. 22150 or M77HV style pump
24360 Fits: M155HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146 Moroso High Volume Package w/ 3⁄4" dia. inlet
22139 Moroso High Volume with Anti-Cavitation Grooves Package
22171 Moroso Billet Aluminum Oil Pump
Part # AVAILABLE OIL PAN OPTIONS
23020 Windage Tray
23000 Oil Pan Baffle
25800 Crank Scraper
38551 Oil Pan Flange Head Bolts, SBC
93151 Oil Pan Gasket, ’86-up block with a 1 piece rear main seal
