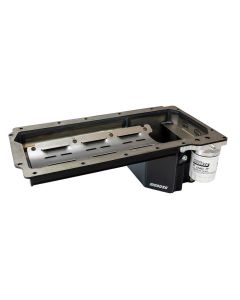

Oil Pan, GM LS, S10 & Blazer Swap, Rear Sump, 7 Inch Deep, Spin On Oil Filter, Steel

Oil Pan, GM LS, S10/Blazer, Rear Sump, 7" Deep, Spin-On Filter, Steel

• Steel, Wet Sump, 7" Deep, 6.5 Quart Capacity
• Engine Application; GM Gen III & IV LS
• Fits; 2WD & 4X4 Chevrolet S10/Blazer, GMC S15/Sonoma/Jimmy with LS Swap
• Clears 4.125" stroke with most steel rods
• Integrated louvered windage tray, anti-slosh baffle and rear anti-climb baffle for improved oil control
• 1/4" N.P.T. dipstick provision and -8AN magnetic drain plug
• Sump designed to clear 2WD and 4X4 Chevy S10/Blazer & GMC S15/Sonoma/Jimmy with LS V8 swap
• Black powder coat finish by Moroso Powder Coating

Manufacturer-listed related parts and options:

24178 Oil Pump Pick-Up, GM LS Gen III & IV, For No. 20178
24179 Oil Pump Pick-Up, Dart LS Next, For No. 20178
38541 Oil Pan Stud Kit, GM LS
22463 Oil Filter, GM LS, 22MM
93152 Oil Pan Gasket, GM LSc
97315 O-Ring, GM LS Oil Pick-Ups
25030 GM LS Rear Oil Passage Plug, Billet
97006 Drain Plug, -8AN, Magnetic
23707 Remote Filter Adapter, 90°, GM LS
23688 Remote Filter Adapter, GM LS
22119 Oil Pump, GM LS, Std. Vol, Std. Pressure
22120 Oil Pump, GM LS, Race
22121 Oil Pump, GM LS, Std. Vol, High Pressure
22122 Oil Pump, GM LS, Std. Vol, High Pressure
