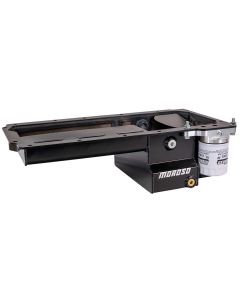

Oil Pan, Dart LS Next Gen 3 Skirted Block, Early F Body, Road Race Baffling, Drain Back Fittings, Black Pc

Oil Pan, Dart LS Next Gen 3, Steel, Black Powder Coat, W/ Drainbacks

• Engine Application; Dart LS Next Gen 3 Skirted Block
• Fits; ’67-’92, ’10-’15 Camaro, ’68-’78 Nova, ’65-’72 Chevelle, ’53-’96 Corvette, ’78-’88 G-Body, and GM S10/S15 Two Wheel Blazer/Truck,
• Can also be used in additional applications; check dimensions
• Clears up to 4.25" stroke with most steel rods
• Road-race trap door assembly and removable windage tray for superior oil control
• Fabricated steel with black powder coat finish by Moroso Powder Coating
• Dual -8AN oil drainback provisions (plugs included)
• Includes billet aluminum 22MM spin-on filter mount with 1/4" NPT sensor port (filter not included)
• Compatible with LS car application dipsticks

Manufacturer-listed related parts and options:

24152 Oil Pump Pickup, Dart LS Next
71162 Dust Shield, GM LS
22118 Oil Pump, Dart LS Next/SHP
97315 Replacement O-Rings, GM LS Oil Pump Pickup, 2 Pack
22463 Oil Filter, 22MM
24890 GM LS Oil Pump Flange Reinforcement
93152 Oil Pan Gasket, GM LS
38541 Oil Pan Stud Kit, GM LS
