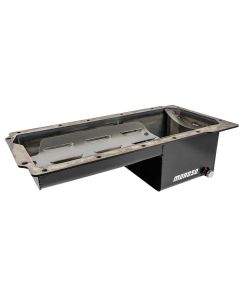

OIL PAN, LS NEXT, Steel , Black Powder Coat
- Steel, Wet Sump, 7 Quart Capacity, 6" deep, Baffled
- Engine Application: Dart LS Next Engine Blocks with Moroso Billet Aluminum Spacer Kit
- Fits: 1967-'92 Camaro, 1968-'78 Nova, 1965-'72 Chevelle, 1953-'96 Corvette, 1978-'88 G-Body, and GM S10-S15 Two Wheel Drive Blazer-Truck
- Pan does not include Moroso Oil Pan Spacer Kit No. 22934
- Oil pan has a 3/16" thick precision laser cut steel rail specifically designed for the LS Next Engine Block
- Features a trap door baffle and a removable windage tray for horsepower savings and oil control
- Has a 16 gauge steel sump to stand up to the toughest racing conditions
- Front of the oil pan is 2" deep to the beginning of the 6" deep sump
- The sump is 8-1/2" long and 8-5/8" wide
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Clears 4.25" stroke with most steel rods
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24144 Fits: Moroso Dart Next LS Oil Pump No. 22118
Part # AVAILABLE OIL PAN OPTIONS
22118 Dart LS Next, LS SHP Oil Pump
24890 GM LS Oil Pump Flange Reinforcement
22934 Oil Pan Spacer Kit, Dart LS Next
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
