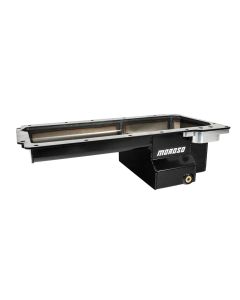

Oil Pan, GM LS, Early F-Body, Rear Sump, Road Race, Remote Oil Filter Adapter
OIL PAN GM LS CAMARO/SWAP, ROAD RACE, REMOTE FILTER
- Steel, Wet Sump, 7 Quart Capacity, 6" deep
- Early F-Body/Swap
- Engine Application: GM LS Series
- Fits: 67-15 Camaro/firebird, 68-72 Nova, 65-72 Chevelle, 53-96 Corvette, 78-88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications; check dimensions for clearance
- Oil pan has a thick precision laser cut steel rail with a black powder coat
- Has a Billet Aluminum Remote Oil Filer Adapter that has two straight -10AN ports for remote filter installation, clears 4.25 stroke
- Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
- The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
- Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24050 Fits Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump, GM LS, Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
22605 -10AN to -10AN Fitting
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
24890 GM LS Oil Pump Flange Reinforcement
38541 Oil Pan Mounting Stud
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pac
25030 Oil Galley Diverter, GM LS
