Oil Pan, GM LS, Front Sump, Swap, Road Race, Remote Oil Filter Adapter

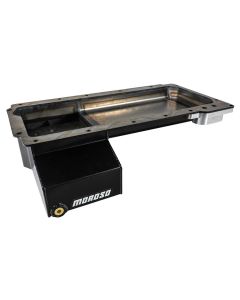

Oil Pan, Steel, Black Powder Coat, GM LS, Front Sump, Road Race Baffled Swap l
- Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep, Baffled
- Engine Application: GM LS Series
- Fits: LS Engine Conversions that require a Front Sump (Check Measurements)
- Oil pan has a thick precision laser cut steel rail with a black powder coat
- Clears 4.25" stroke with most steel rods
- Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
- Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
- Accepts GM Part 12558253 Windage Tray with modification
- Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pickup, GM Part 12572654
- Two straight 10AN fittings for remote filter installation
- Dipstick Fitting for required oil pan mounted dipstick
- Magnetic Drain Plug
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24052 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump GM LS Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22605 -10AN to -10AN Fitting
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
23712 Spin-on Oil Filter Adapter
24890 GM LS Oil Pump Flange Reinforcement
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38541 Oil Pan Mounting Stud
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
