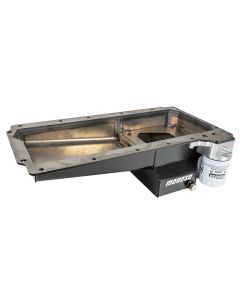

Oil Pan, GM LS, Swap, Rear Sump, Road Race, Spin-On Oil Filter Adapter
Oil Pan, Steel, Black Powder Coat, LS Swap Road Race Baffling, Uses Moroso Part # 22463 or Similar Filter
- Steel, Wet Sump, 7 Quart Capacity
- Engine Conversion Race Baffled. Angled Sump, Fully Fabricated Steel Oil Pan
- Engine Application: GM LS Series
- Fits: '67-'15 Camaro/Firebird, '68-'78 Nova, '65-'72 Chevelle, '53-'96 Corvette, '78-'88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications: check dimensions for clearance
- Oil pan has a thick precision laser cut steel rail and a clear zinc finish
- Has a billet aluminum Spin-on Oil Filer Adapter that accepts a 22mm thread. Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, clears 4.25" stroke
- The sump is 8-3/8" long and 10-¼" wide
- Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
- The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24050 Fits Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump, GM LS, Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22463 Oil Filter
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
23713 Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail
24890 GM LS Oil Pump Flange Reinforcement
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
