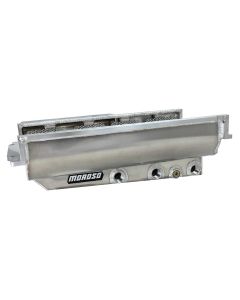

Oil Pan, Dart LS Next/Next 2 Non-Skirted, Dry Sump, 3 P/U, Aluminum

Oil Pan, Dart LS Next/Next 2 Non-Skirted, Dry Sump, 3 P/U, Aluminum

• Aluminum, Dry Sump, 7.5" Deep
• Engine Application; Dart LS Next & LS Next 2, Non-Skirted Block
• Fits; Drag Race, Check Dimensions For Chassis Fitment
• Clears 4.100" stroke with most steel rods
• Integrated windage screen and full-length power kick-out for superior oil control
• Designed for use with Dart LS Next non-skirted blocks; fully fabricated aluminum construction with billet end caps eliminates the need for billet adapter rails for installation
• (3) -12AN pickups, driver/left side
• Compatible with Moroso No. 22764 pump bracket and No. 22385 dry sump pump

Manufacturer-listed related parts and options:

97005 Drain Plug, -8AN
22385 Dry Sump Pump, Right Side, GM LS, 5 Stg, 1.200" PS
22764 Dry Sump Pump Mounting Bracket, Pans Nos. 20136 & 20137
23691 -12AN/-12AN ORB Fitting W/ Screen
