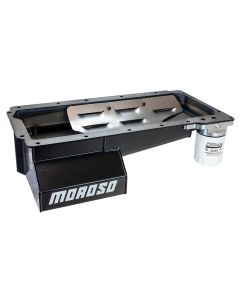

Oil Pan, GM LS And Dart LS Next Gen 3, Front Sump, Ultra 4 Truck, Steel

Oil Pan, GM LS & Dart LS Next Skirted, Front Sump, Ultra 4 Truck, Steel

• Steel, Wet Sump, Front Sump, 7 Quart Capacity, 6" Deep
• Engine Application; GM Gen III & IV LS, Dart LS Next Skirted Block
• Fits; Ultra 4 Race Truck With Rear-Facing Engine; Other Front Sump Applications Check Dimensions For Chassis Fitment
• Clears 4.25" stroke with most steel rods
• Compatible with Ultra 4 trucks with rear mounted, rear facing engines; can also be used in other applications requiring a front-sump style oil pan
• Diamond-shaped 4 trap door assembly, anti-slosh sump baffle and pan-mounted louvered windage tray for superior oil control
• Fabricated steel with black powder coat finish by Moroso Powder Coating
• Includes billet aluminum adapter 22mm spin-on filter mount with 1/4" N.P.T. sensor port

Manufacturer-listed related parts and options:

24109 Oil Pump Pickup, Front Sump, Dart LS Next Block
24052 Oil Pump Pickup, Front Sump, GM LS
38541 Oil Pan Stud Kit, GM LS
22463 Oil Filter, GM LS, 22MM
93152 Oil Pan Gasket, One Piece, GM LS
97315 O-Ring, GM LS Oil Pick Ups
25030 GM LS Rear Oil Passage Plug, Billet
71162 Dust Shield, GM LS
22119 Oil Pump, GM LS, Std Vol, Std Pressure
22120 Oil Pump, GM LS, Race
22121 Oil Pump, GM LS, High Vol, High Pressure
22122 Oil Pump, GM LS, Std Vol, High Pressure
23707 Remote Filter Adapter, 90°, GM LS
23688 Remote Filter Adapter, GM LS
