MAP 1JZ / 2JZ Torque Plate | Multiple Toyota Fitments (2JZ-TQP)

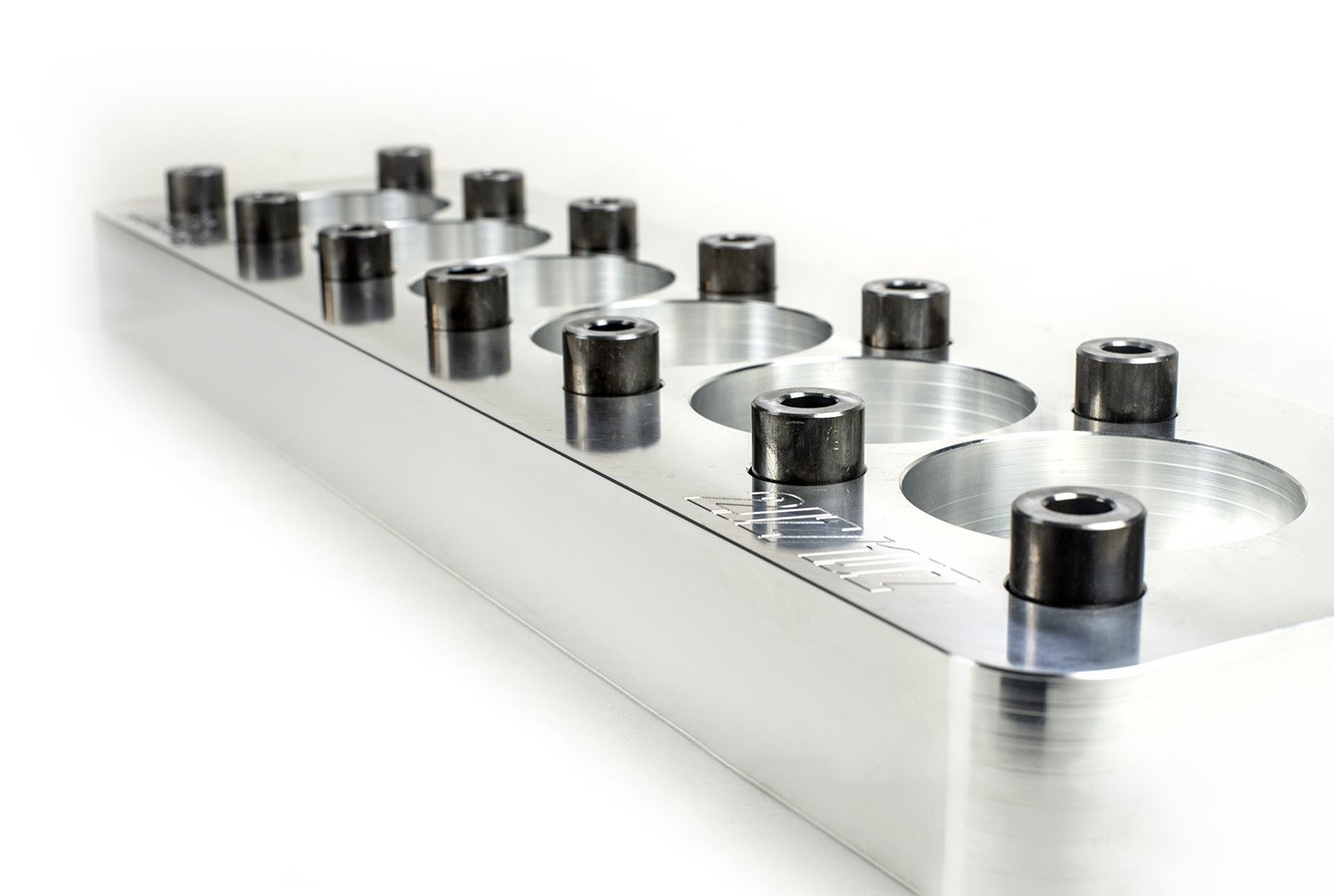

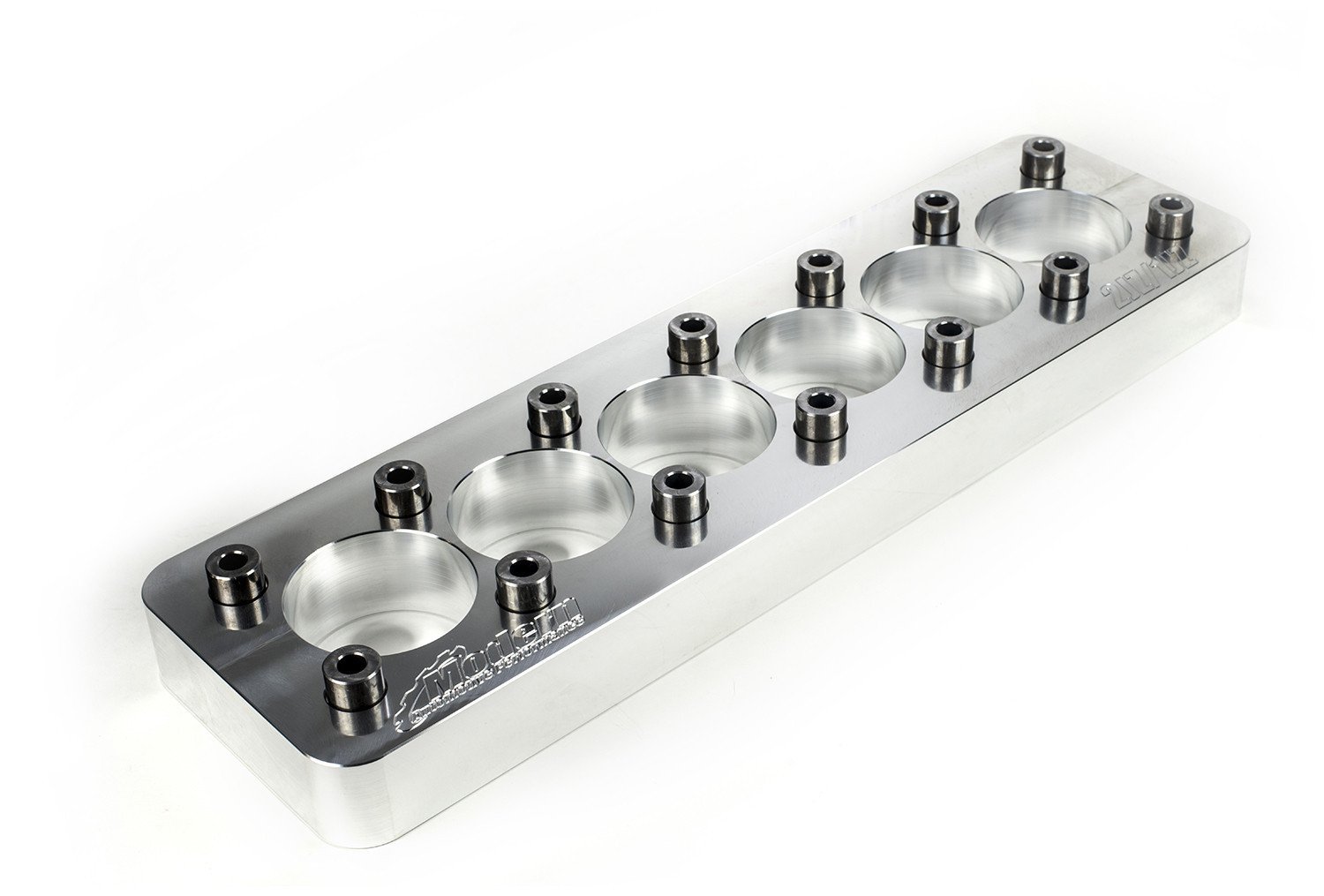

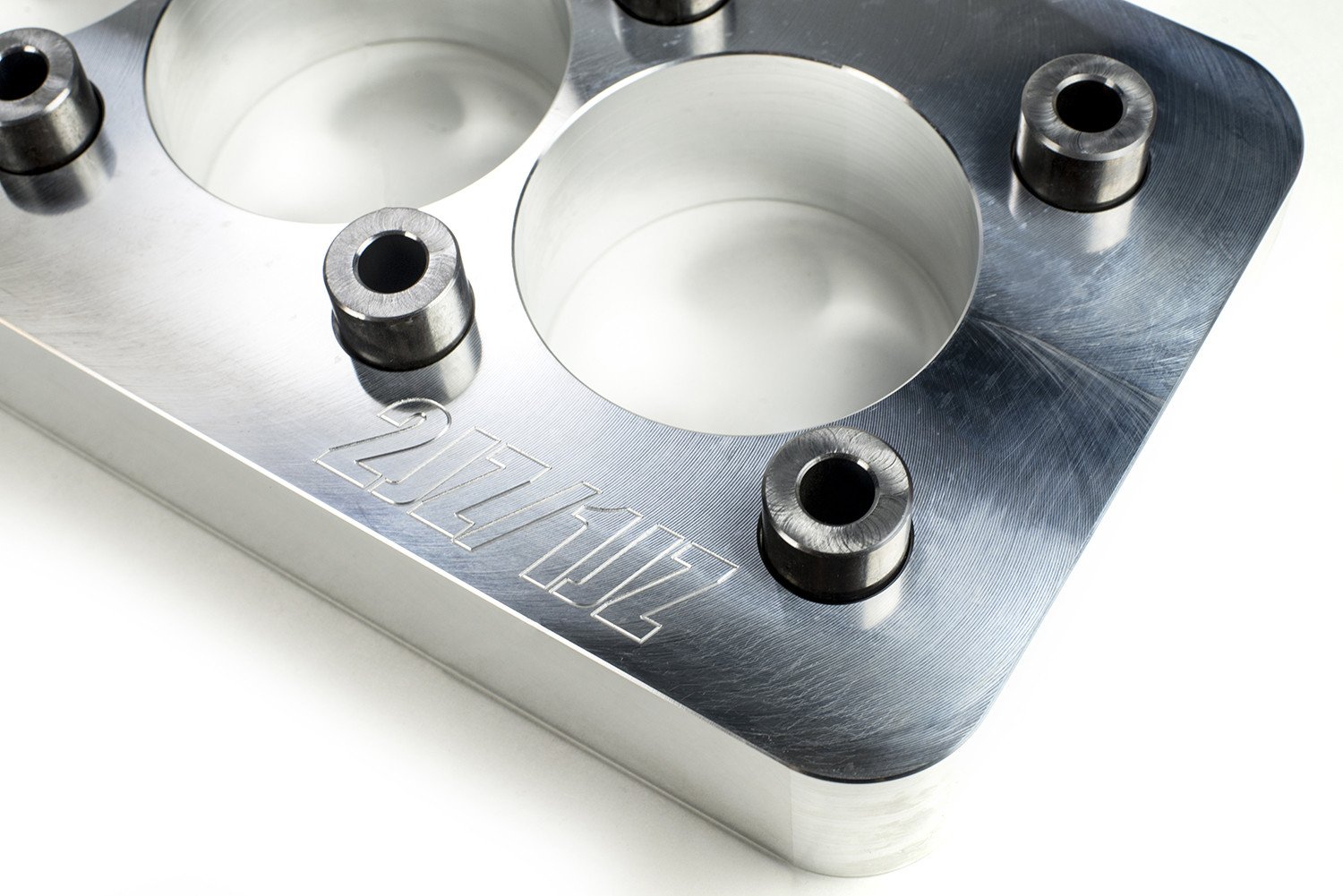

Toyota 1JZ / 2JZ Torque Plate

A torque plate is essential during any boring or honing process. When you torque a head down on the block, the pressure from the bolts will cause the cylinder bore to slightly deform. A torque plate takes the place of the head during machining to simulate any distortion that will be caused when the head studs/bolts are tightened. Using a torque plate while boring and/or honing removes any bore irregularities and enables a true cylindrical shape, while allowing the machine operator access to the bores.

Features

• 2" thick billet aluminum
• DOM steel spacers allow for proper head stud depth and penetration into the block
• Suitable for bore sizes up to 89mm
• Compatible with stock or 1/2" head studs
• 100% Made in the USA

Applications

• 1JZGTE Engines
• 2JZGTE Engines
• 2JZGE Engines

What's In The Box?

• (1) Torque Plate
• (14) Stand Offs

Warranty

• Manufacturer Standard Warranty
