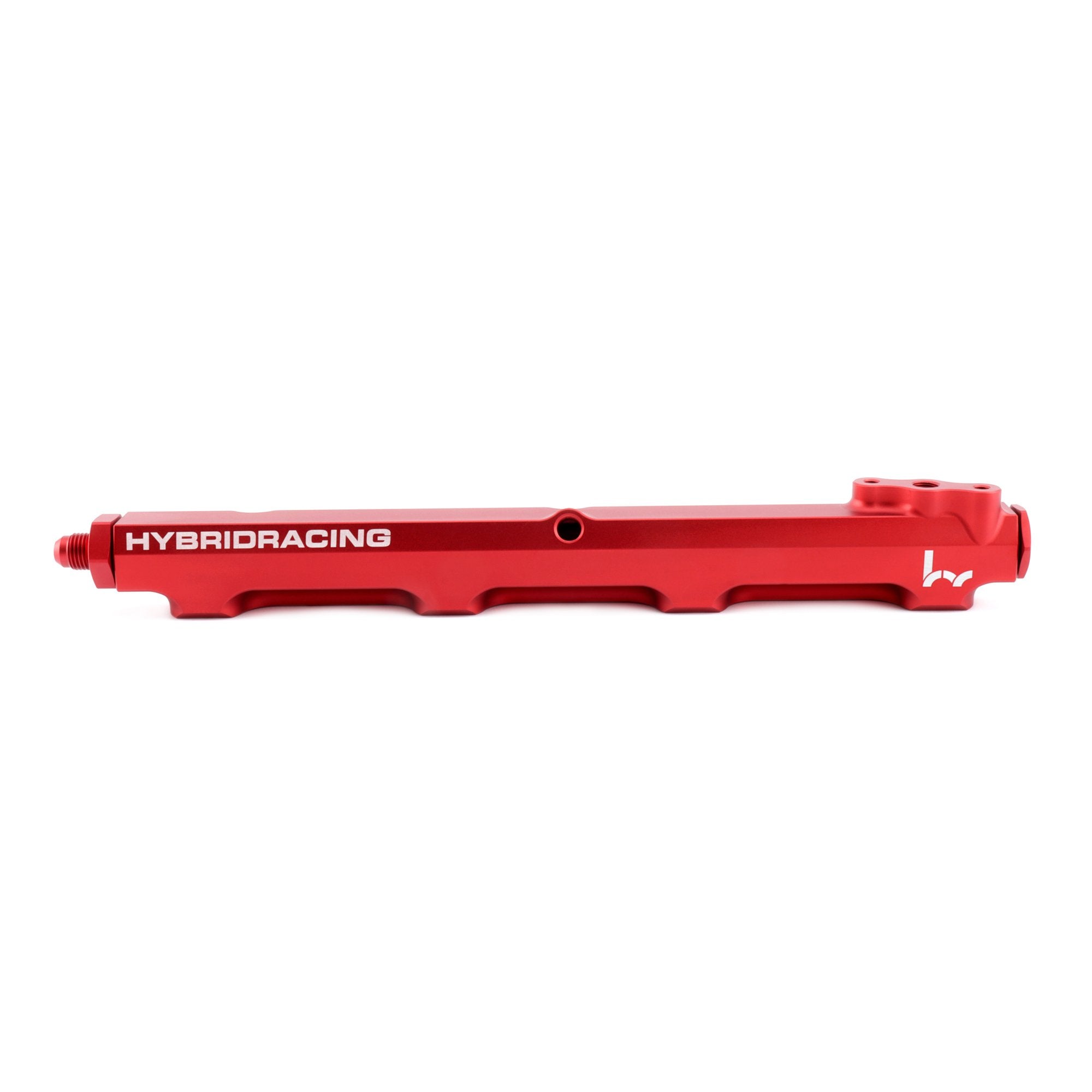

Hybrid Racing High-Flow Fuel Rail (B-Series / Universal)
- Universal B-series Engine Fuel Rail.
- One-piece machined billet aluminum
- Large -8ORB ports with a large center bore
- 1/8th NPT port for fuel pressure gauge.
- 1/8th NPT port for fuel pressure regulator
- Dust Black or Dust Red anodized finish
-
Hybrid Racing fuel rails are made from 6061 aluminum with T6 heat treatment and feature our three-step Dust Black anodized finish with a laser-etched logo ensuring that your engine bay looks fresh and your engine stays fed!
Each rail includes a 1/8" NPT hole that allows you to mount a fuel pressure gauge directly to your fuel rail. This puts the fuel pressure gauge in a spot that's easily visible, so you don't have to poke around in the engine bay just to see if you have fuel pressure. All of the ports can accept a -8 ORB fitting in the inlet(s) and outlet allowing you to run either the OEM B-Series FPR or use the supplied 1/8th NPT plug and use the side -8ORB port.
What intake manifolds is this rail compatible with?This rail has been shown to mount to the most popular OEM Honda B-Series intake manifolds equipped on the Honda B16 & B18 engines.
Is this fuel rail universal?Since this fuel rail requires the use of an aftermarket fuel line, there is no specific or direct bolt-on application. It is a universal fuel rail that must use an aftermarket fuel line as it is not compatible with the OEM B-Series fuel line.
We suggest using our fuel line kit with this rail, item HYB-FLK-01-10
-
Compatible with all fuels. Fuel Pressure Gauge not included.
-
Fits:
- B-Series Engines (Universal)
- Requires custom AN feed line (Does not fit with OEM Banjo fitting)
- B-Series Engines (Universal)
-
What's included:
- (1) B-Series Fuel Rail
- (2) -8 ORB / -6AN Adapter fitting
- (1) -8 ORB Plug
- (2) 1/8th NPT Plug
- View Install Guide HERE
