Ferrea Endurance Dual Valve Springs B18C1 B17 B16A H22A F22B - Acura Integra GS-R (1994 - 2000) 1.8L (B18C1-C3) - Per Valve
Ferrea Acura Integra GS-R (1994 - 2000) 1.8L (B18C1-C3)

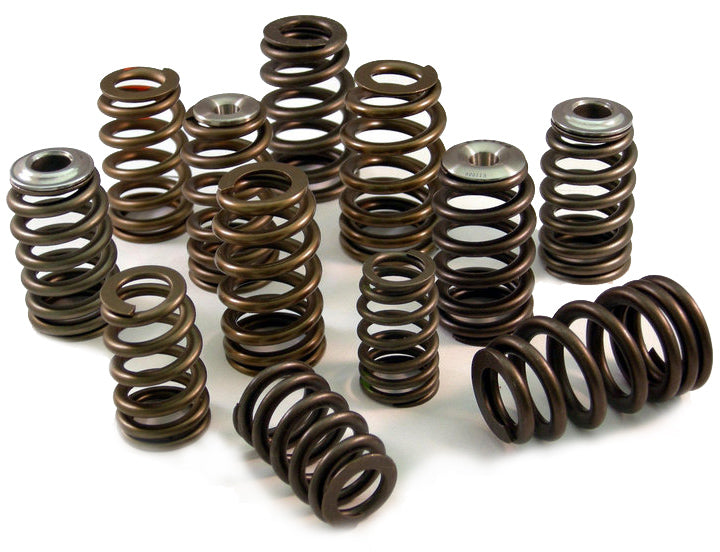

Ferrea Endurance Dual Valve Springs B18C1 B17 B16A H22A F22B
The design and processes on these dual valve springs are optimized to reduce valvetrain harmonics and provide greater stability on high horsepower applications. We use high grade premium super-clean PAC alloy materials and maintain tight tolerances for those unique aftermarket cylinder heads.
Specifications:
CAR MAKE | Acura |
OUTER SPRING DIAMETER | 22.85mm / 30.45mm |
MAX NET LIFT | 12.5mm |
INNER SPRING DIAMETER | 17.50mm / 22.85mm |
SEAT PRESSURE | 80lbs @ 33mm |
OPEN PRESSURE | 190lbs @ 23mm |
RATE INCH | 279 |
COIL BIND | 18mm |
ENGINE SPECIFICATIONS | B18C1 B17A1 B16A2 H22A F22B |
