Driveshaft Shop Level 5.9 Axle Kit

DSS JG56-J2-ABS
Available for Order
$2,569.42

$2,569.42

Driveshaft Shop Level 5.9 Axle Kit
1992-2000 Honda Civic (EG/EK) with ABS/94-01 Integra (DC) J-Series Level 5.9 Axle/Hub Kit (EGJ2/EKJ2 Mounts ONLY) (Pair) / Yes - $2,569.42

** May be back ordered 6-8+ weeks, please contact us before purchasing for proper lead times **

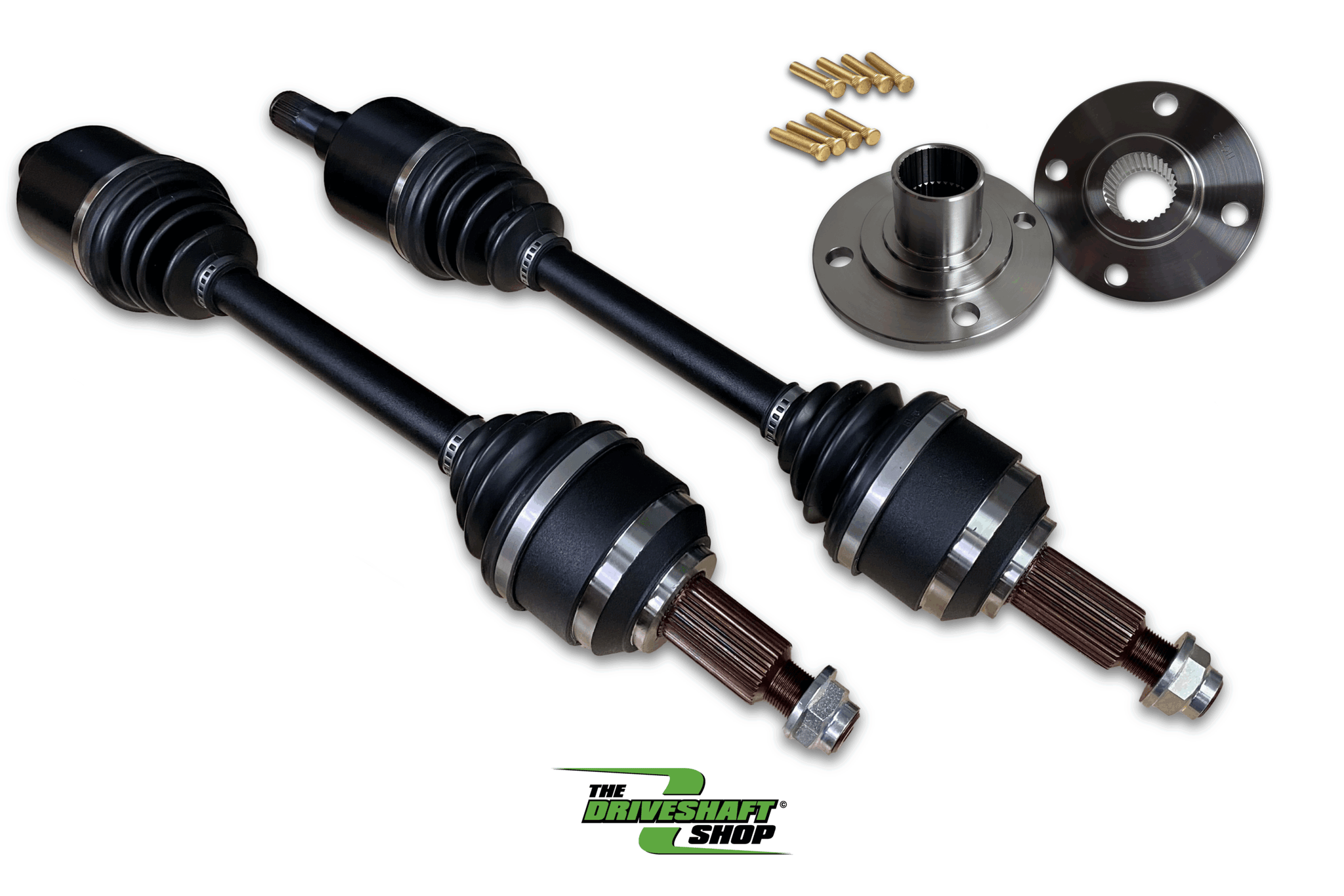

The new level 5.9 axle/hub set is similar to our Level 5 system but with some major upgrades. The inner cv now features our new tapered high-quality aircraft-grade axle bars. We now have created a Pro race-worthy system that works with the standard spline size on the differential end, that can be used with Quaife, Wavetrac, and other aftermarket limited slip diffs and spools. What we have done is made a new ball & cage inner cv from high-quality Chromoly. This inner cv now has 6 contact points and is stronger than a Porsche 930 (108mm) cv (the same cv used by many high dollar systems). This along with the 33 spline outer and new 36 spline tapered bars makes it the strongest set of axles to date. The Kit comes with both axles and a set of custom hubs that will fit the stock bearing sizes and extended ARP studs. This system is designed for 850WHP and tire size will not affect its strength.

Also, don’t forget to check out our intermediate bars and spools listed on the site. If you need this system custom made please don’t hesitate to call/e-mail, we have an entire wall of axle bars in many different sizes and we would be able to make a custom set in a very short time. DSS is dedicated to bringing you the best drivetrain products at an affordable price. When you’re serious look our way.

The Level 5.9 hubs are made for 94-01 Integra/92-00 Civic with ABS/96-00 EX or 99-00 Si knuckles. If you are using these for a Civic that did not have ABS, you must change the knuckles to one of the above due to the wheel bearing size.



Warranty: 1 year
