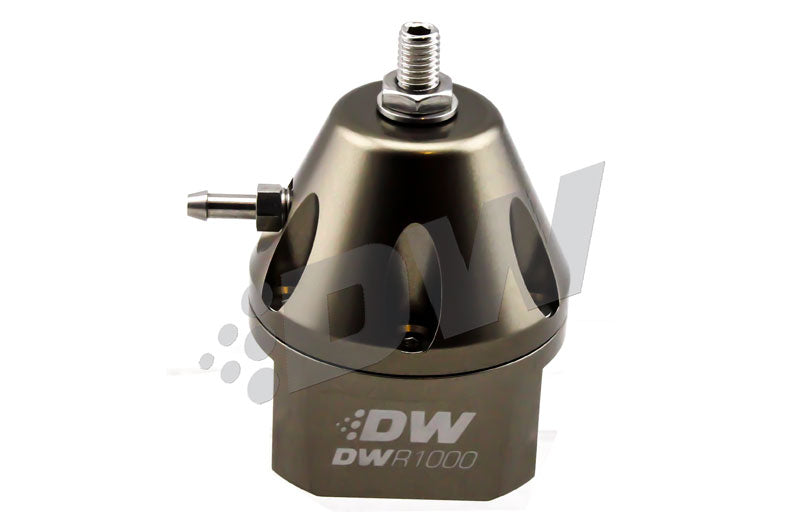

DeatschWerks R1000 Universal Adjustable Fuel Pressure Regulator, Anodized Titanium



DeatschWerks R1000 Universal Adjustable Fuel Pressure Regulator, Anodized Titanium

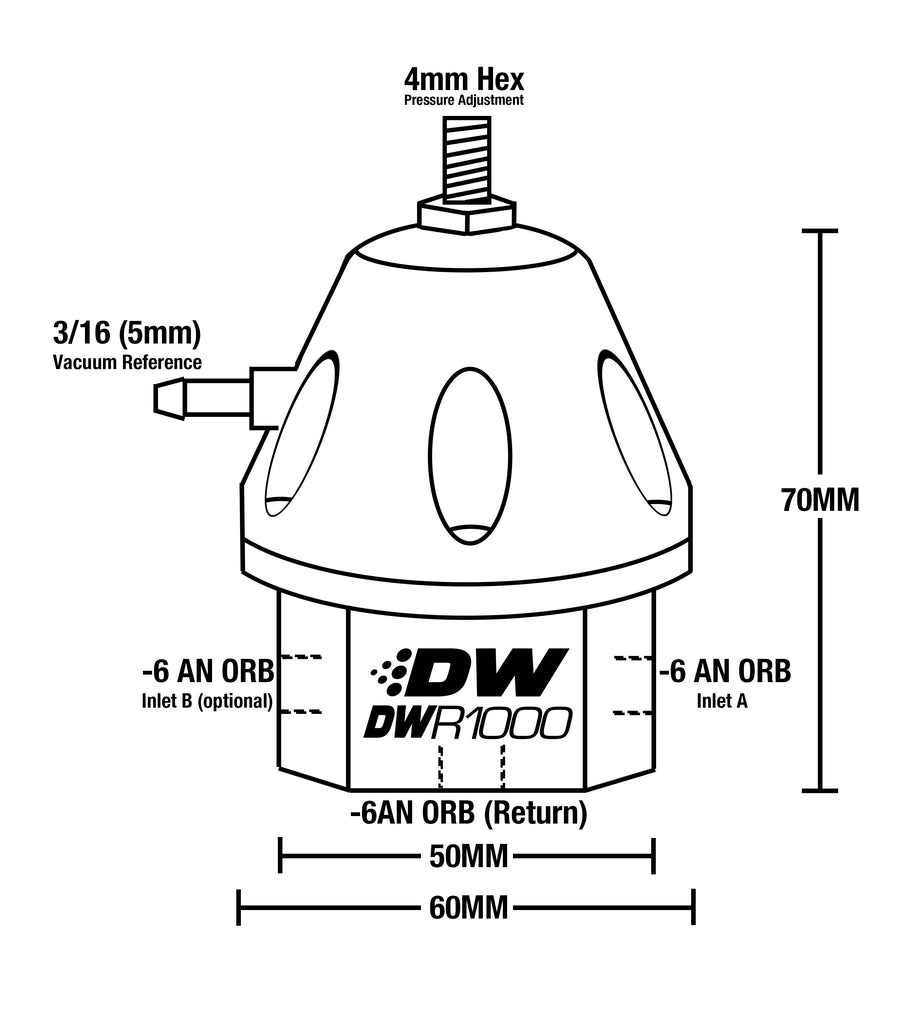

The 100% Ethanol-compatible DWR1000 Universal Fuel Pressure Regulator is ideal for engines in the 300HP to 1000HP+ range and is able to handle 500lph of flow. It comes in your choice of anodized black or titanium finish, and an optional 0-100 psi mechanical gauge is available (please see other items in Fuel Pressure Regulators on our website). Pressure Range 30-100psi, flow Rating 500 LPH+, gauge port fitting is1/8 NPT and the fuel line fittings (2-in, 1-out) are -6 AN ORB.

The approach taken for the DWR1000 adjustable fuel pressure regulator is not to reinvent the wheel, but simply to make a better wheel. All the best aspects of the existing regulators on the market were included in the DWR1000, but in addition, improvements were made in materials and design to culminate in the best all-around regulator available to date.

Designed and tested specifically for ethanol compatibility – Many popular regulators on the market today contain brass internals, which can corrode and weaken when used with e85. The DWR1000 was designed from the ground up with e85 in mind and is constructed with 100% e85 compatible materials such as stainless steel, anodized aluminum, and nitrile.

The DWR1000 was benchmarked against 5 of the leading regulators on the market and designed to outperform all across multiple categories…

100% Ethanol Compatibility

Stainless hardware

Nitrile diaphragm

High carbon steel spring

100% brass free

Precision Pressure Adjustment

Smooth ball bearing adjustment 2psi/turn pressure ratio

Massive 45mm diaphragm

Adjustable from 30-100+ psi

Maximum Installation Flexibility

Multi-positional mounting bracket

2 inlet ports for single or dual rail plumbing

Integrated 1/8” NPT gauge port

Semi-compact 60mm footprint

Highest Quality and Value Competitive price point

In-house QA testing process

3-yr comprehensive warranty
