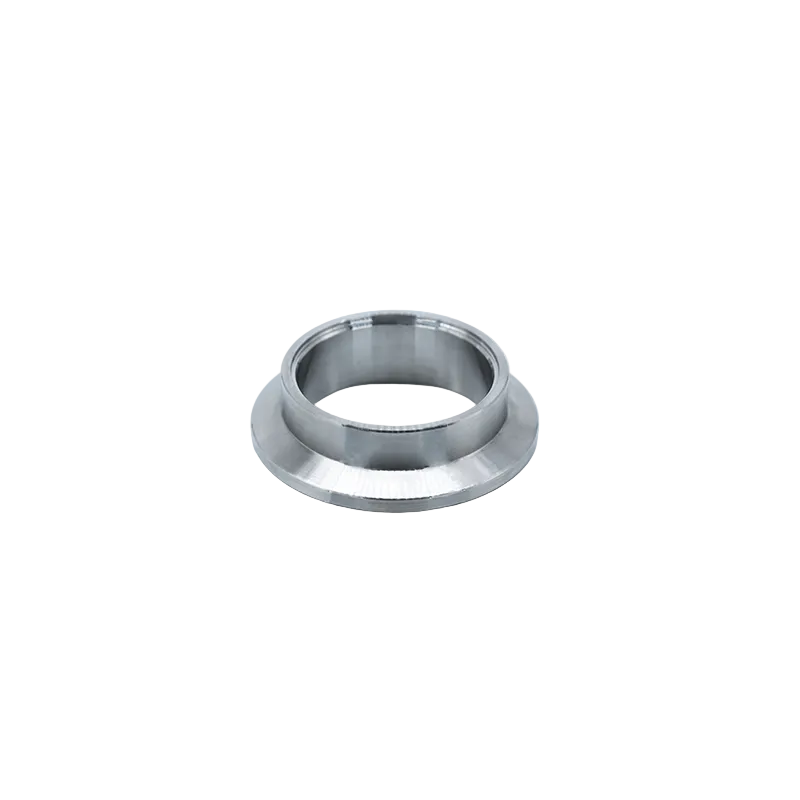

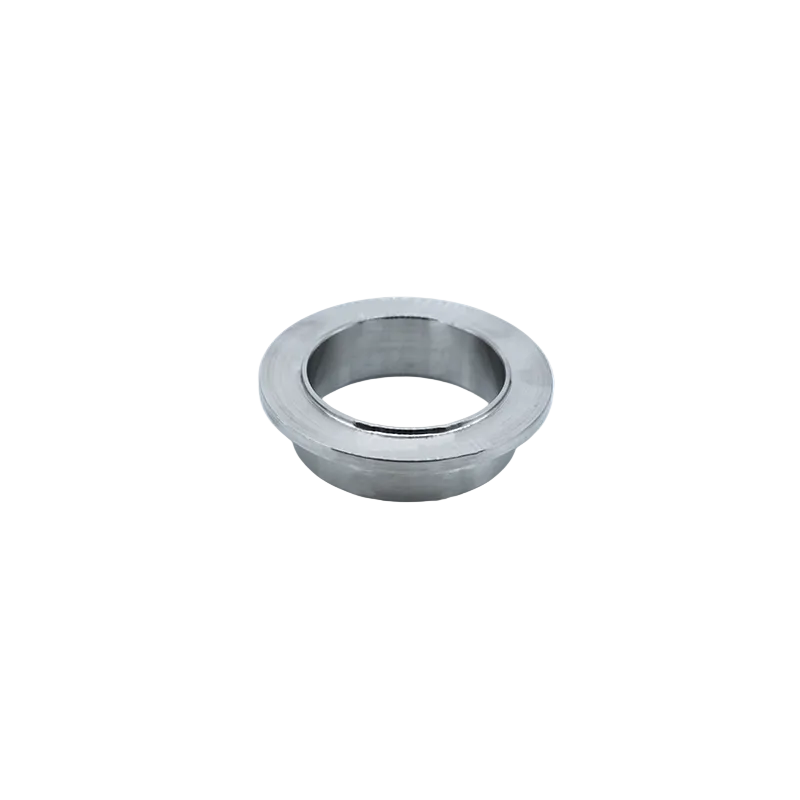

CT2RX/CT3RX/CT4RX Dual V-Band Turbine Housing Manifold Side Inlet Flange (.63/.82/1.06)

CT2RX/CT3RX/CT4RX V-Band Flange – Manifold Side (For Dual V-Band Turbine Housing)

The CT2RX/CT3RX/CT4RX Manifold Side V-Band Flange is CNC-machined from 304 stainless steel for a precise, durable fit with dual V-band turbine housings.

Key Features:

• Fits manifold side of dual V-band turbine housings

• Precision stainless steel construction

• Withstands high heat, pressure, and corrosion

• Compatible with CT2RX/CT3RX/CT4RX clamps and housings

Dimensional Specifications:

• Flange ID: 1.984" (50.4mm)

• Flange Counterbore ID: 2.173" (55.2mm)

• Flange OD (Weld Side): 2.374" (60.3mm)

• Overall Flange Height: 0.850" (21.6mm)

• Flange Apex Width: 0.141" (3.6mm)

• Male Retainer OD: 2.114" (53.7mm)

• Overall Flange OD: 3.000" (76.2mm
