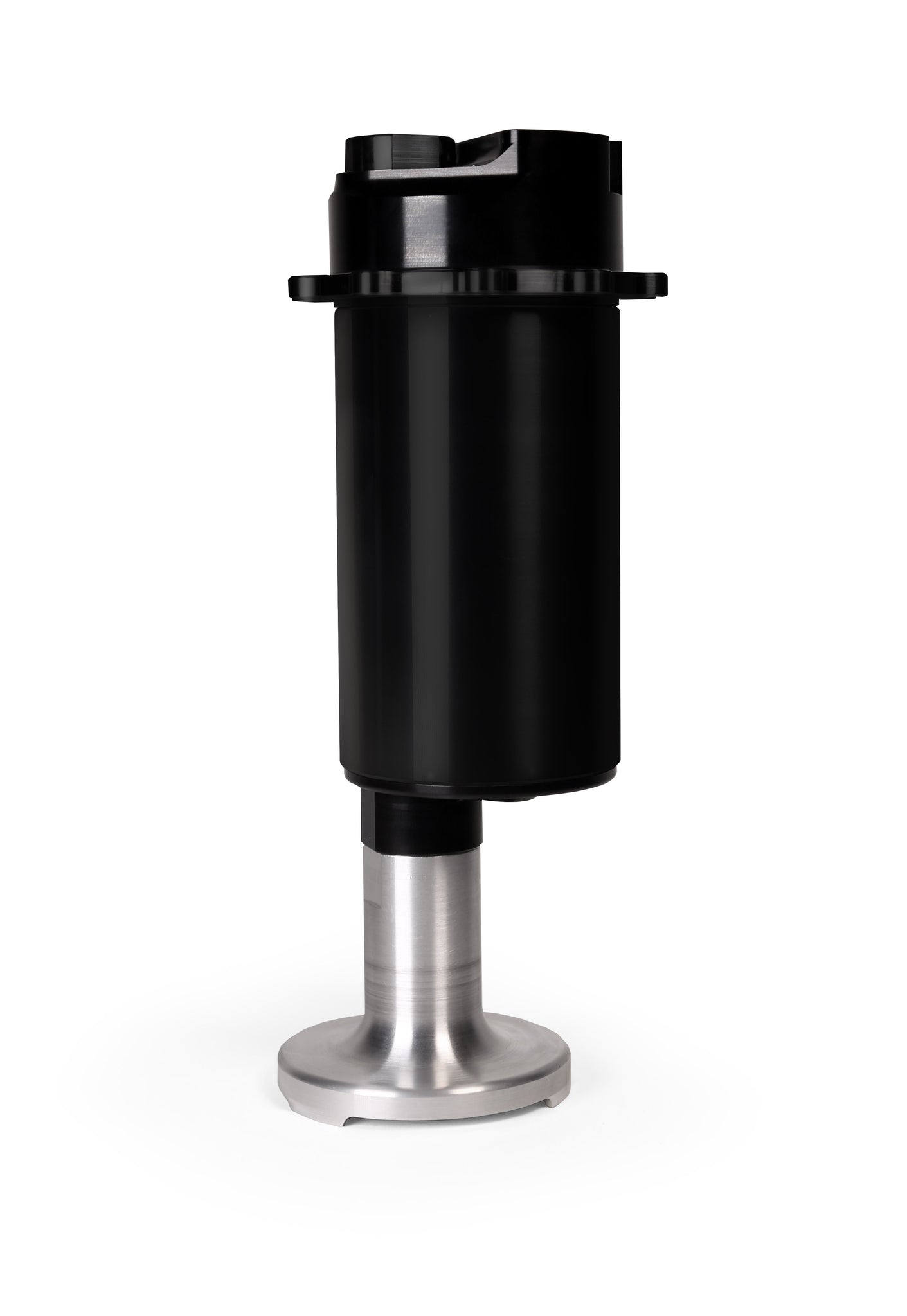

Aeromotive Fuel Pump, Module, w/ Fuel Cell Pickup, Brushless Spur Pro+

Part Number 18026 5.0 Brushless Stealth Gear Pump
Ground Shaking Performance - Advanced Technology

Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10" deep custom fuel cell.

• Supports



  • Fuel injected engines:
    up to 3400 FWHP - naturally aspirated
    up to 2600 FWHP - forced air induction


  • Carbureted engines:
    Up to 3600 FWHP - naturally aspirated
    Up to 2700 FWHP - forced air induction






• E85 Compatible, reduce max FWHP by 30%


• Lighter than the traditional Pro-Series pumps.


• Reduced current draw at higher, EFI pressures.


• Extended service life in methanol and ethanol.


• New integral spur-gear pumping mechanism.


• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.


• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.


• ORB-10 outlet port.


• Requires straight 12-VDC to 16-VDC power supply.


• Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
