Aeromotive Fuel Pump, Module, w/ Fuel Cell Pickup, Brushless Spur Pro

AER 18025
Available for Order

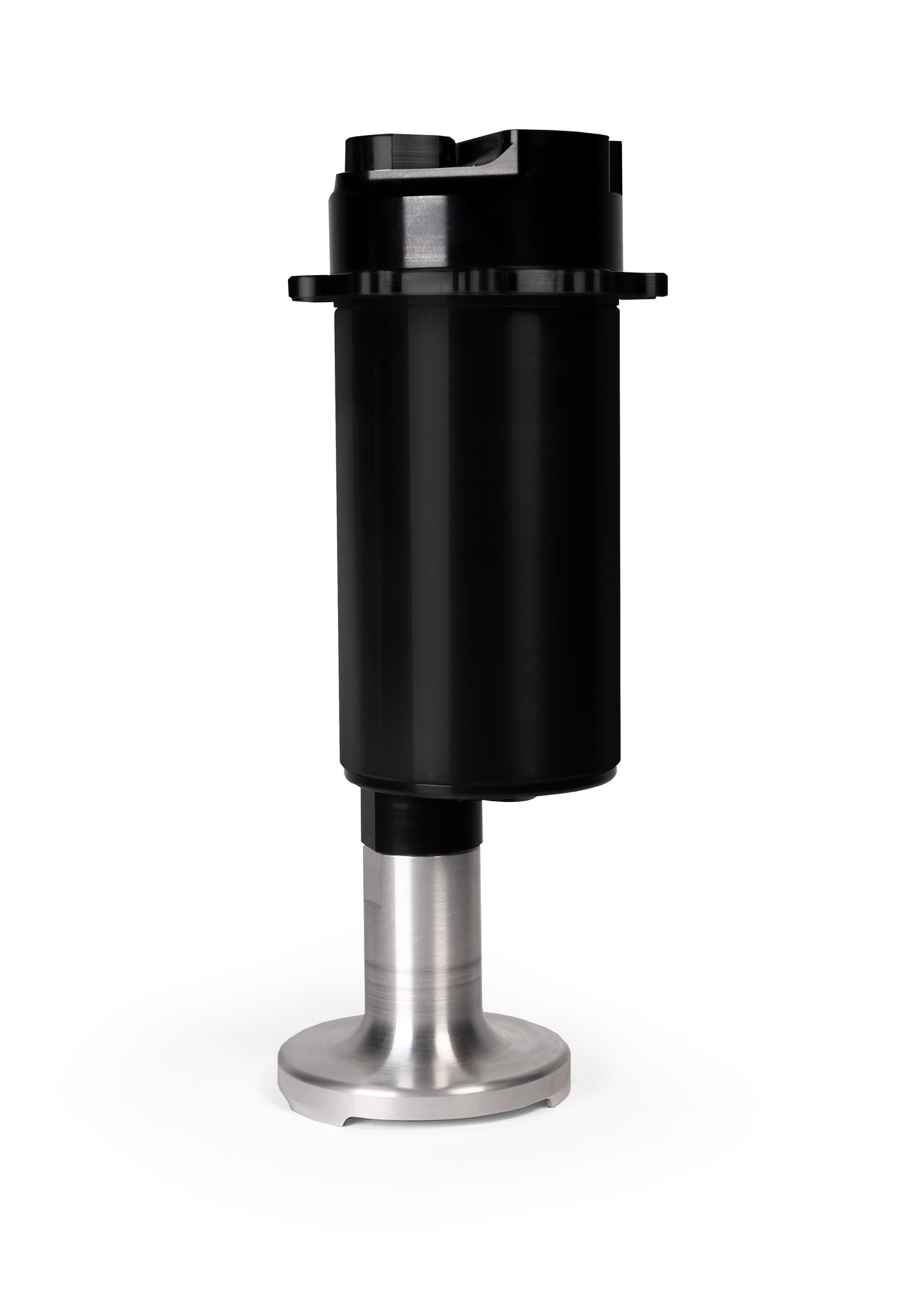

Aeromotive Fuel Pump, Module, w/ Fuel Cell Pickup, Brushless Spur Pro
Part Number 18025 3.5 Brushless Stealth Gear Pump
Pro-Series Performance Plus Advanced Technology

Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10" deep custom fuel cell.

  • The Pro-Series performance you expect and more:

    • Fuel injected engines:
      up to 2400 FWHP - naturally aspirated
      up to 1800 FWHP - forced air induction

    • Carbureted engines:
      Up to 2600 FWHP - naturally aspirated
      Up to 2000 FWHP - forced air induction

  • E85 Compatible, reduce max FWHP by 30%

  • Lighter than the traditional Pro-Series pump.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

View Installation Instructions

Also Available in an external in-line pump and installed in a Stealth Fuel Cell.  Click Here for More Info
