Aeromotive System, Fuel, Phantom 200, Return Style Carb (Includes Phantom 200, Filter, Filter Bracket, Regulator, Wiring Kit, Gauge, Fittings)
These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.
Ideal for naturally aspirated and blown, carbureted engines producing from 300- 900 plus flywheel Horse Power, on the street or at the track. AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line sold separately and not included.

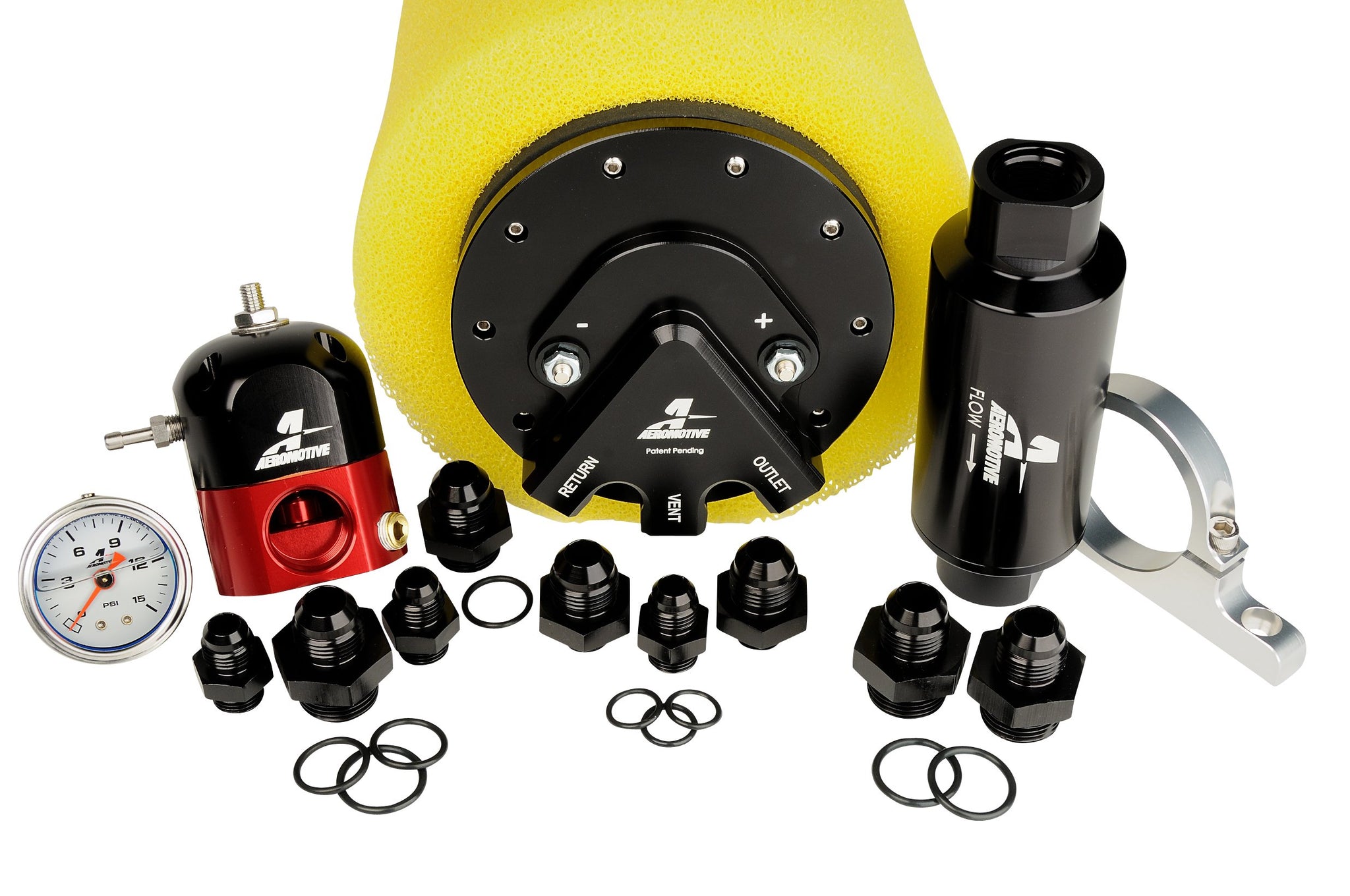

This kit contains the following parts:
1ea Part Number 18689 Phantom 200
1ea Part Number 12321 Filter 10-micron Paper
1ea Part Number 12305 Filter Bracket
1ea Part Number 13204 Regulator, ByPass, Carb.
1ea Part Number 16307 Fuel Pump Wiring Kit.
3 ea Part Number 15606 AN-06 ORB to AN-06 flare
1 ea Part Number 15607 AN-08 ORB to AN-08 flare
3 ea Part Number 15610 AN-10 ORB to AN-08 flare
1ea Part Number 15626 AN-06 Port Plug
2ea Part Number 15649 AN-06 ORB to AN-08 flare
1 ea Part Number 15632 0-15 PSI Pressure Gauge
Click here to learn more about this universal in tank fuel system.
Click here for installation instructions
