Aeromotive 14202 / 13212 Combo Kit For Demon Style Carb

AER 17250
Available for Order


Aeromotive 14202 / 13212 Combo Kit For Demon Style Carb
Part Number 17250: A2000 Bypass Fuel Log Kit (Demon Style)

A2000 Bypass Fuel Log Kit (Part Number 17250). Fits Demon style carburetors.

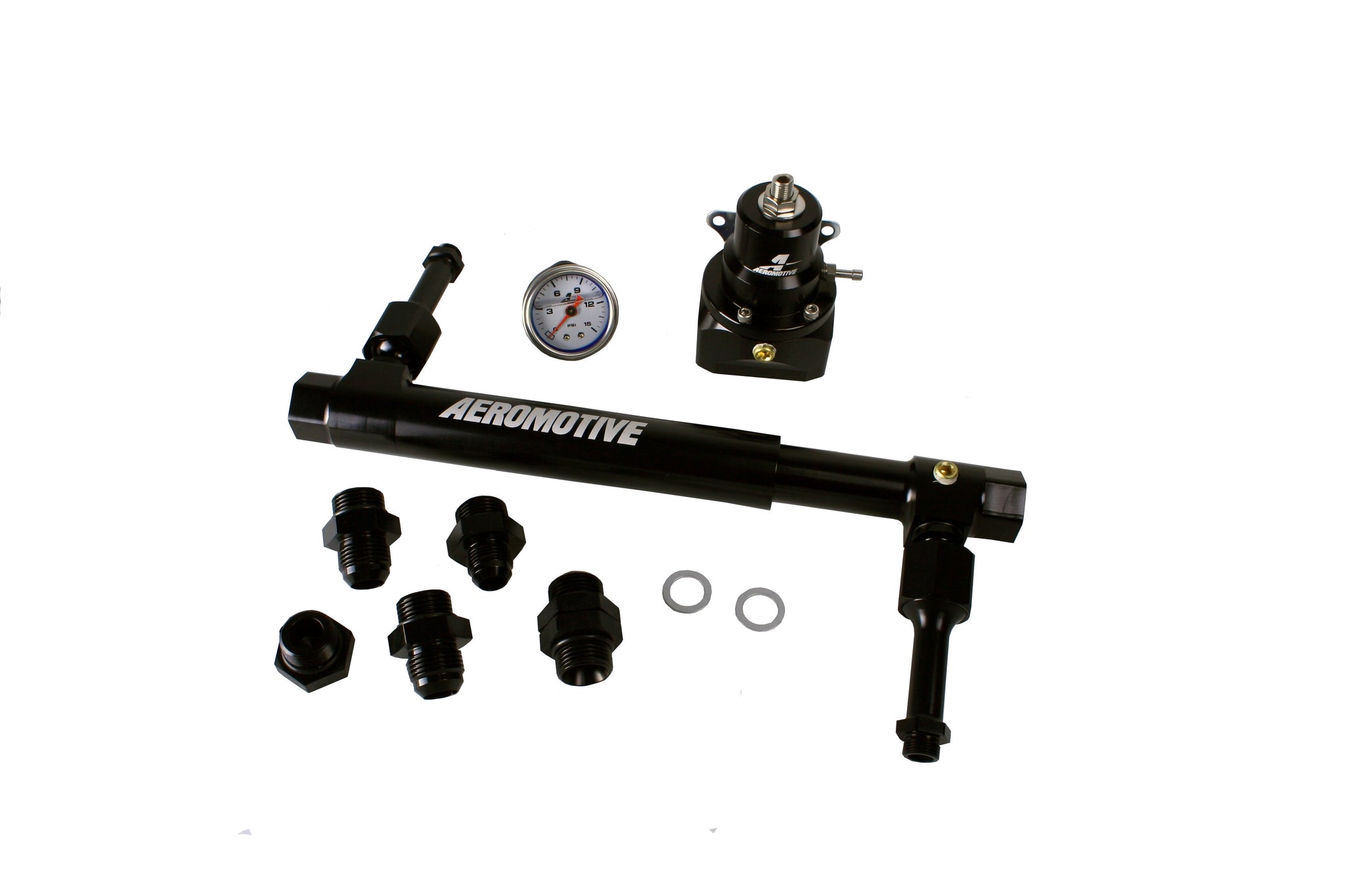

Includes 14202 Dual Action Adjustable Fuel Log, 13212 A2000 Bypass Regulator and 15632 Fuel Pressure Gauge

For Demon Style Float Bowls (9/16 x 24 Thread)

The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (Part Number 14201) and Demon (Part Number 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive Part Number 13212 (A2000 Bypass - gasoline) or Part Number 13214 (Double Adjustable Bypass - alcohol) fuel pressure regulators.

  • Carburetor inlets swivel + or - 2 0º in all directions.

  • Telescoping center line 7 .700” to 13.450”.

  • ORB-10 inlet and outlet ports.

  • (2) 1/8” NPT ports for gauges or pressure transducers.

  • 1.056 / .806” ID bore.

  • Type II bright dip black anodized finish.View Installation Instructions

Read More
Read Less
