Aeromotive System, Fuel, Phantom 340, Return Style(Phantom 340, Filter, Filter Bracket, Regulator, Wiring Kit, Fittings, 3/8" Quick Connect, Gauge)
These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with today's Hot New Carb to EFI Throttle Body Conversion Systems, including the desired Phantom Baffled Fuel Pump Kit a 340 LPH fuel pump. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.
Ideal for popular throttle body EFI conversions systems that make the move to EFI so easy. Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

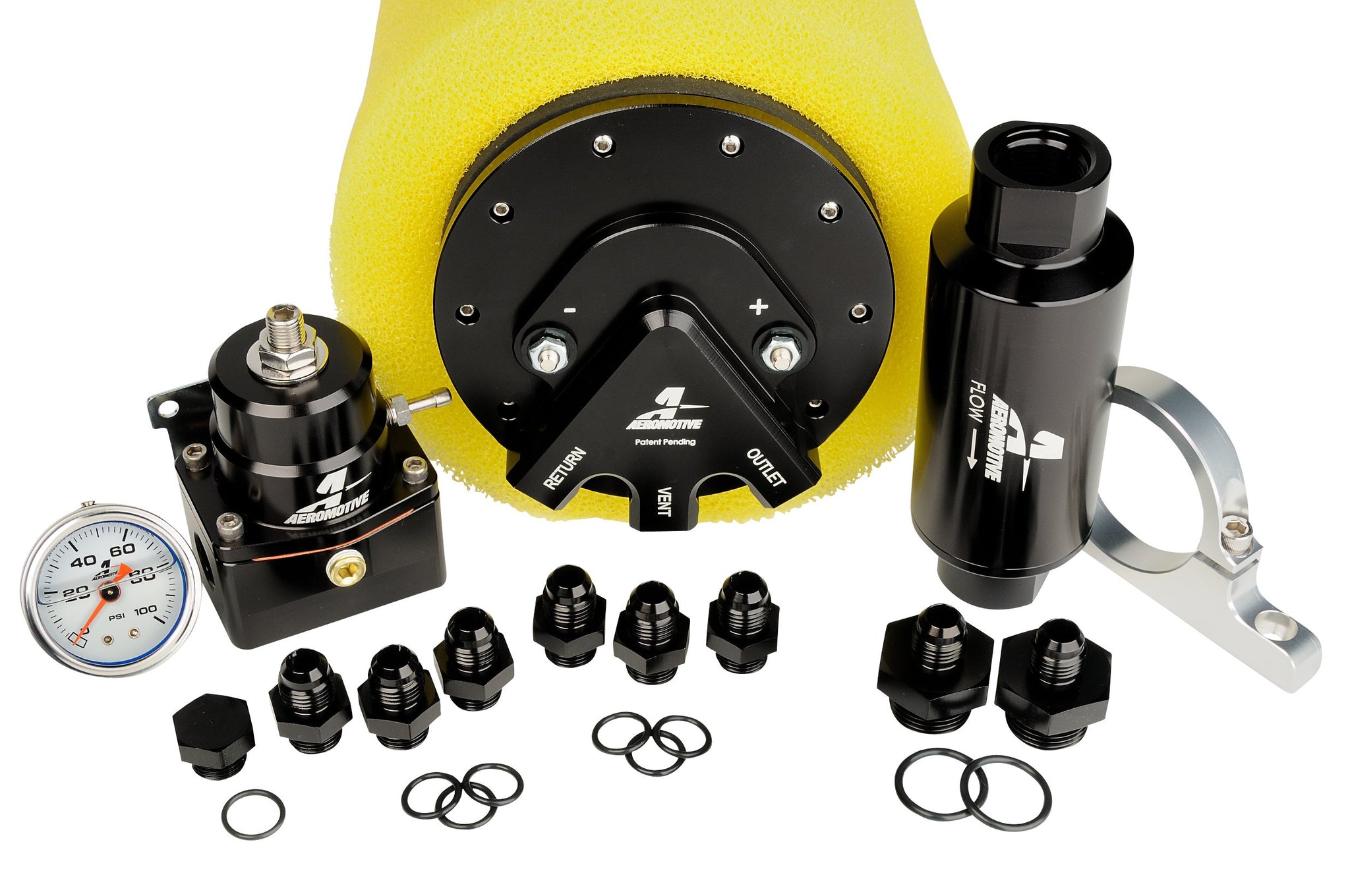

This kit contains the following parts:
1ea Part Number 18688 Phantom 340
1ea Part Number 12321 Filter 10 micron Paper
1ea Part Number 12305 Filter Bracket
1ea Part Number 13131 Fuel Pressure Regulator
1ea Part Number 16307 Fuel Pump Wiring Kit.
6 ea Part Number 15606 AN-06 ORB to AN-06 flare
2 ea Part Number 15609 AN-10 ORB to AN-06 flare
1 ea Part Number 15626 AN-06 Port Plug
1ea Part Number 15633 Gauge, 0-100 psi
Click here to learn more about this universal in tank fuel system.
Click here for installation instructions
