Aeromotive System, Fuel, Phantom 200, Return Style(Phantom 200, Filter, Filter Bracket, Regulator, Wiring Kit, Fittings, 3/8" Quick Connect, Gauge)
These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM "return-less" style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8" Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.
Ideal for late model engine transplants so hot with Street Rodders around the world. Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

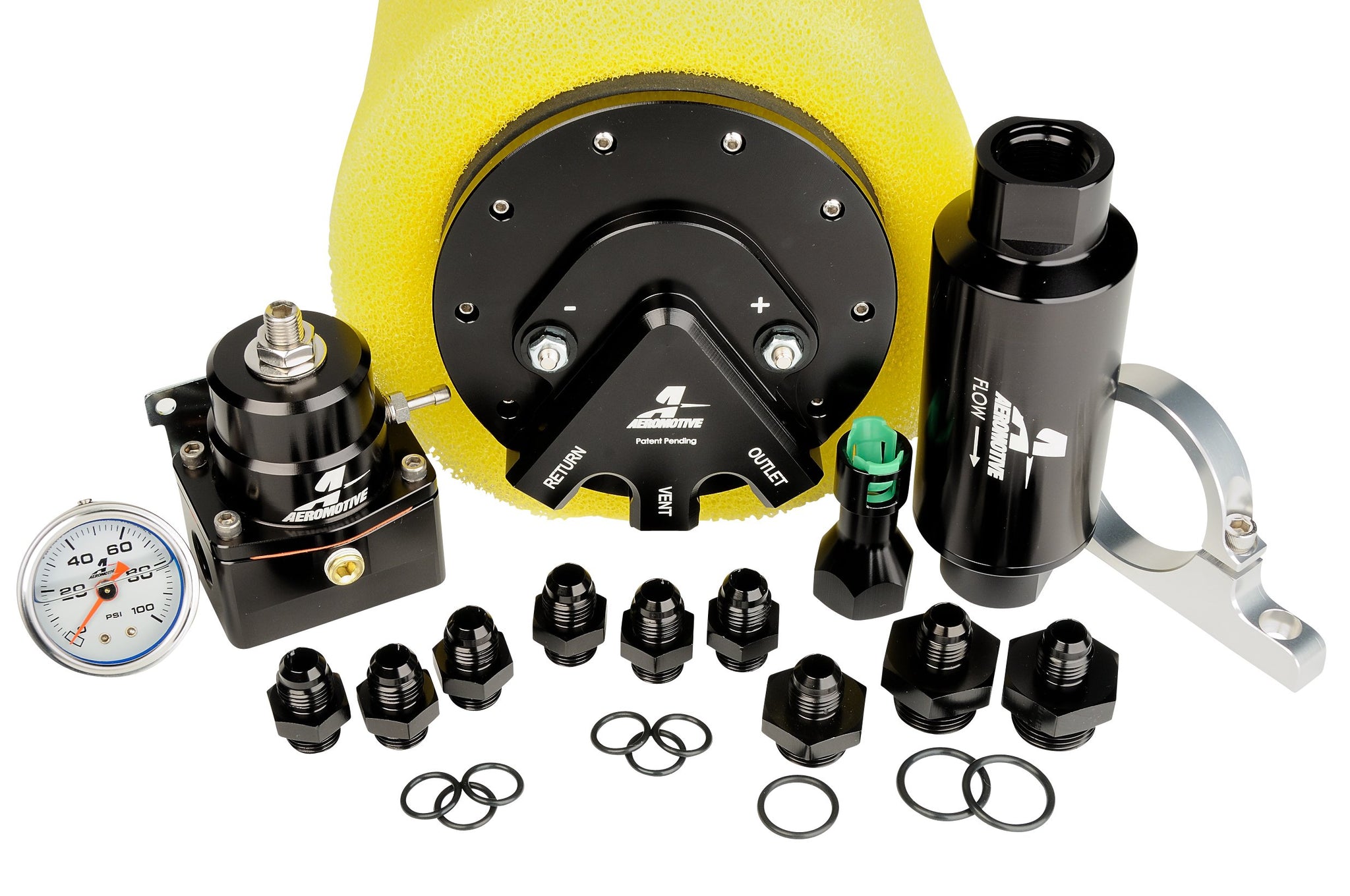

This kit contains the following parts:
1ea Part Number 18689 Phantom 200
1ea Part Number 12321 Filter Assembly, 10-micron
1ea Part Number 12305 Filter Bracket
1ea Part Number 13131 Fuel Pressure Regulator
1ea Part Number 16307 Fuel Pump Wiring Kit.
6 ea Part Number 15606 AN-06 ORB to AN-06 flare
2 ea Part Number 15609 AN-10 ORB to AN-06 flare
1ea Part Number 15633 Gauge, 0-100 psi
1ea Part Number 15672 Y-Block, AN-06
Click here to learn more about this universal in tank fuel system.
Click here for installation instructions
