Aeromotive System, Fuel, Phantom 200, Return Style(Phantom 200, Filter, Filter Bracket, Regulator, Wiring Kit, Fittings, Y-Block, Gauge)

Part Number 17165: Dual Rail EFI Return Kit Phantom 200 & Installation Kit

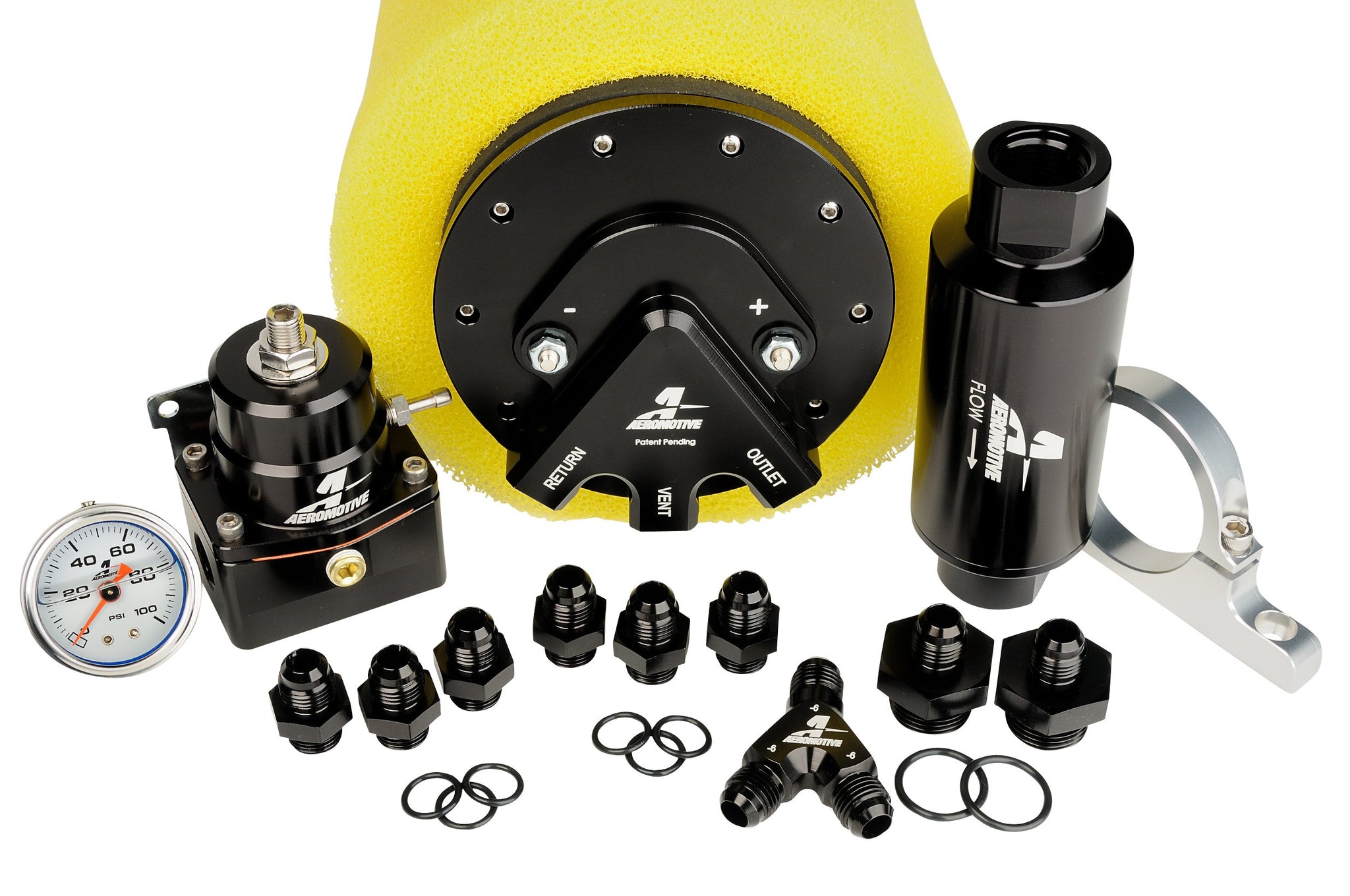

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200  LPH fuel pump.  Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.

Ideal for naturally aspirated and blown, EFI engines producing from 300 - 700 plus flywheel Horse Power, on the street or at the track.  AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

This kit contains the following parts:

1ea Part Number 18689 Phantom 200
1ea Part Number 12321 Filter Assembly, 10-micron
1ea Part Number 12305 Filter Bracket
1ea Part Number 13131 Fuel Pressure Regulator
1ea Part Number 16307 Fuel Pump Wiring Kit.
6 ea Part Number 15606 AN-06 ORB to AN-06 flare
2 ea Part Number 15609 AN-10 ORB to AN-06 flare
1ea Part Number 15633 Gauge, 0-100 psi
1ea Part Number 15672 Y-Block, AN-06
