Aeromotive System, Fuel, 86-95 Ford Mustang, 5.0L., A1000 (This item will supercede Part Number 17105 & 17147)

In 2003 Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we’ve seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw and opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000 and Eliminator Fuel Pumps that bolt right into top of these tanks. Then, we built a complete system to make it one part number that gives you everything you could possibly need to install a complete Aeromotive Fuel System into your Fox Body.

These Fox Body Stealth tanks give you the best performance possible from a stock appearing tank, and our proven A1000 or Eliminator fuel pumps built right into the tank. Choose from either pump and you can now bolt in a fuel tank into your Fox that appears stock, but features an innovative baffling system, a built in fuel pump capable of supporting almost any hp demand and a pre-pump filter.

These tanks and systems are a direct bolt-in for 1986 – 1998 ½ Ford Mustangs. Although the Fox Body began in 1979 and carried all the way through 2004, some modifications are necessary for these system to be direct bolt-ins. See notes below on year specifications.

Click here to watch the installation video!

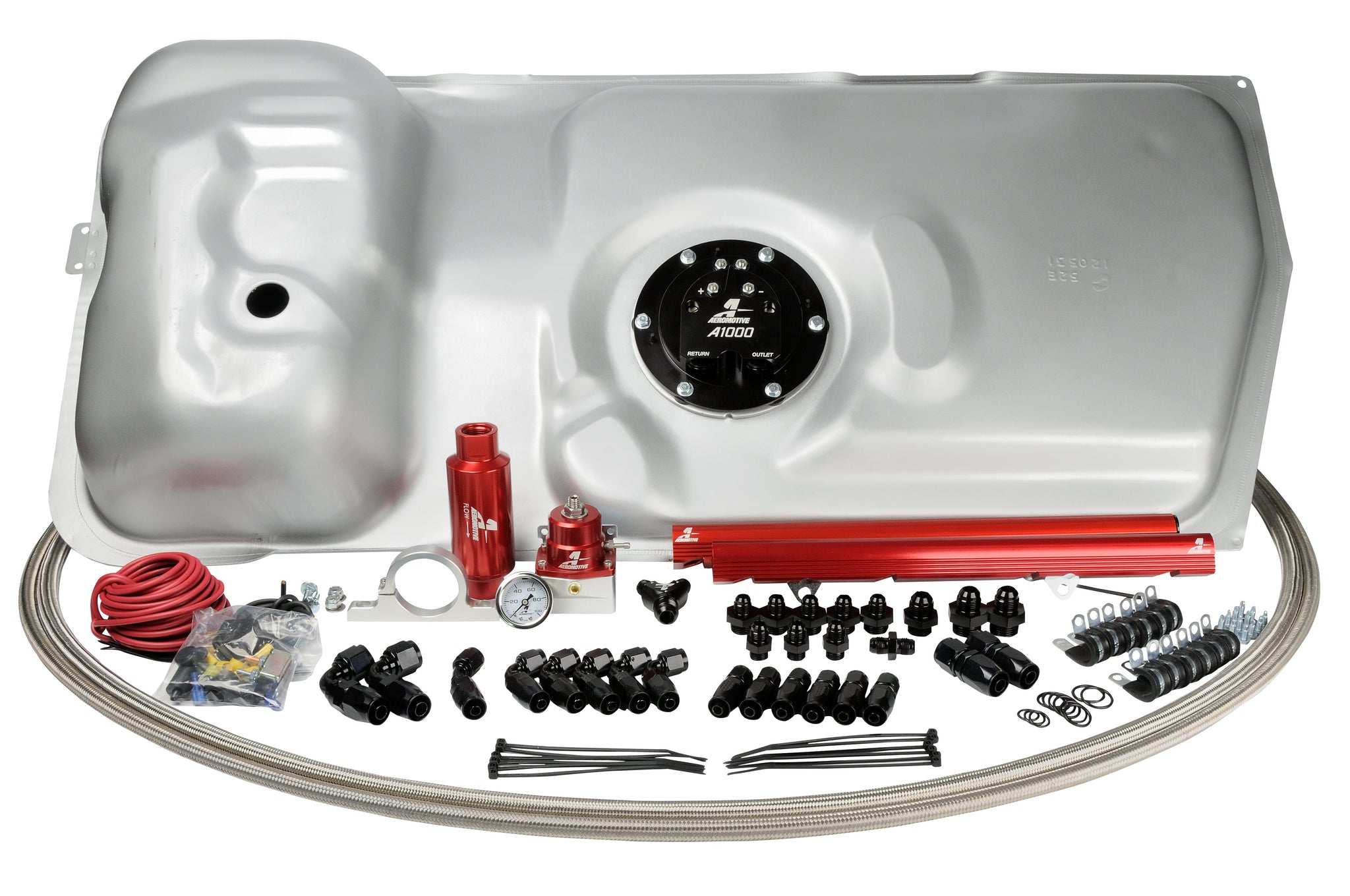

Part Number 17130 – 86-98 ½ A1000 5.0L Mustang Stealth Fuel Tank

• Built in A1000 Fuel Pump


• 100-Micron Stainless Steel Pre Filter


• (1) ORB-08 Outlet Port & (1) ORB-08 Return Port


• Bolts right into factory location using factory tank strapsIncludes:


• Part Number 13109 - EFI Bypass Regulator
  • Part Number 12301 - 10-Micron Post Pump Filter


• Part Number 12305 - 2" Billet Filter Bracket
  • Part Number 14101 - 86-95 5.0L GT & Cobra Fuel Rail Kit


• Complete Fuel Pump Wiring Kit


• All of the necessary port fittings


• Enough AN-08 Fuel Line and Hose-Ends for a complete and total installationRecommended Parts -
  Considering an engine swap or have a 96-98.5 4.6L? These Complete Fuel System are still the best choice. Just choose an additional fuel rail kit from our extensive line-up of fuel rails and add that to your order. Here are a couple examples:Part Number 14103 - 96-04 4.6L SOHC GT Fuel Rail Kit or...
  Part Number 14104 - 96-98.5 4.6L DOHC Cobra Fuel Rail Kit
  For more visit our Fuel Rail sectionYear specifications:
  * For 1979 – 1985 Mustangs, you must use an 1986 or later leveling unit and aftermarket fuel level gauge. (73-10 Ohm)
  * 1998.5 – 2004 Mustang Stealth Tanks coming soon. If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your car. The following Aeromotive Fuel Pump part numbers are bolt-ins for these tanks only.Part Number 18679 – 03-04 Cobra A1000 Stealth Fuel Pump
  Part Number 18680 – 03-04 Cobra Eliminator Stealth Fuel Pump
  (Requires the use of 03-04 Cobra fuel level sending unit as well)View Installation Instructions
