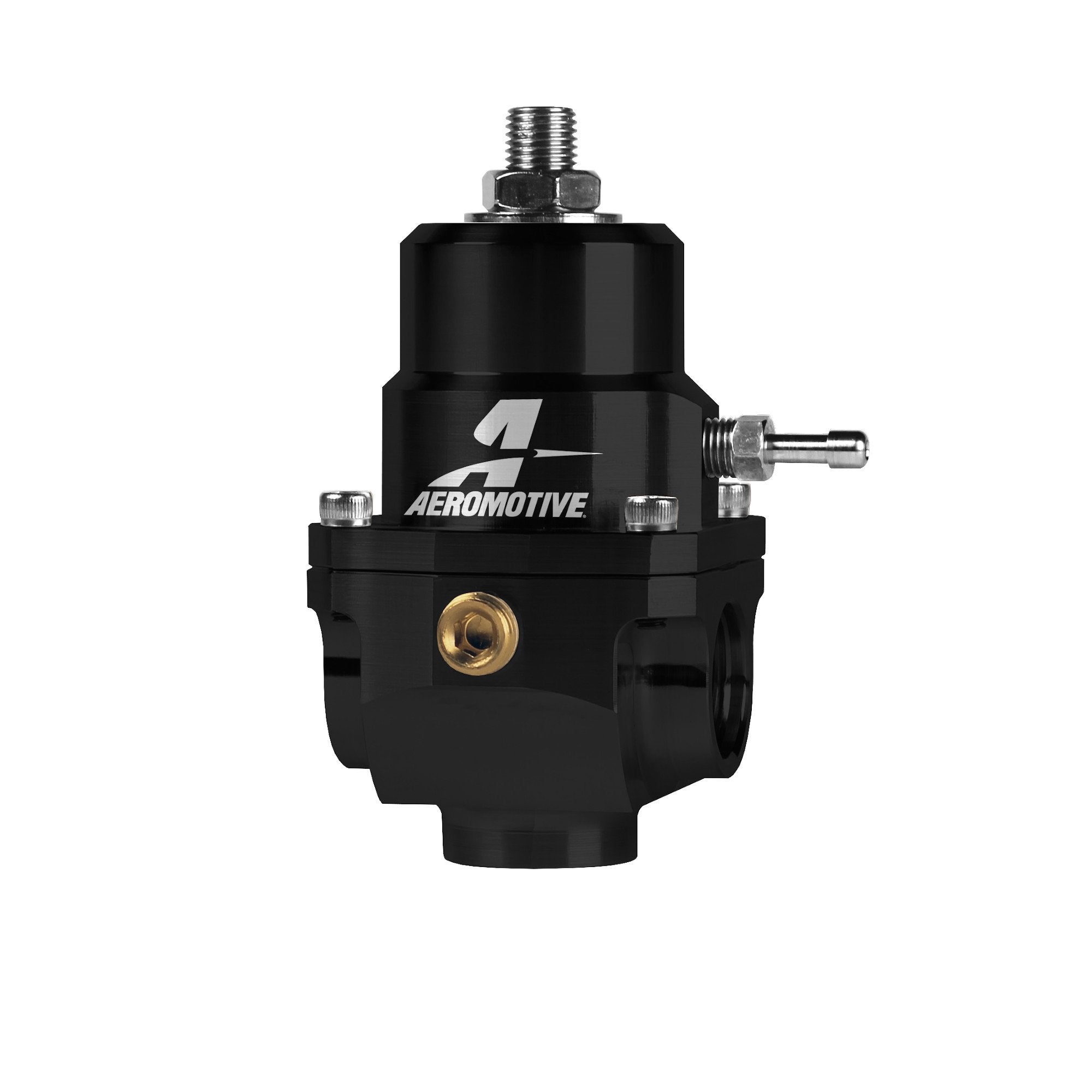

Aeromotive Regulator, X1 Adjustable, 3-15psi, .313 Valve, (2)-08inlets, -08 return
Carbureted Bypass Regulator for Return Style Systems
- Base fuel pressure adjustable from 3-20 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for blow-through carburetors.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 - ORB -08 inlet/outlet ports on the sides.
- 1 - ORB-08 return port on the bottom port.
- 1 - 1/8" NPT Gauge Port with plug.
- 1/16" NPT Boost Port with 5/32" hose barb.
- Compatible with both X1 EFI Conversion kits.
- 0.313" bypass with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive pump up to A1000.
- Mounting bracket included (not shown).
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
Part Number 13014 150 GPH 0.313" Carb Service Kit
Part Number 13013 150 GPH 0.188" EFI Conversion Kit
Part Number 13015 250 GPH 0.313" EFI Conversion Kit
