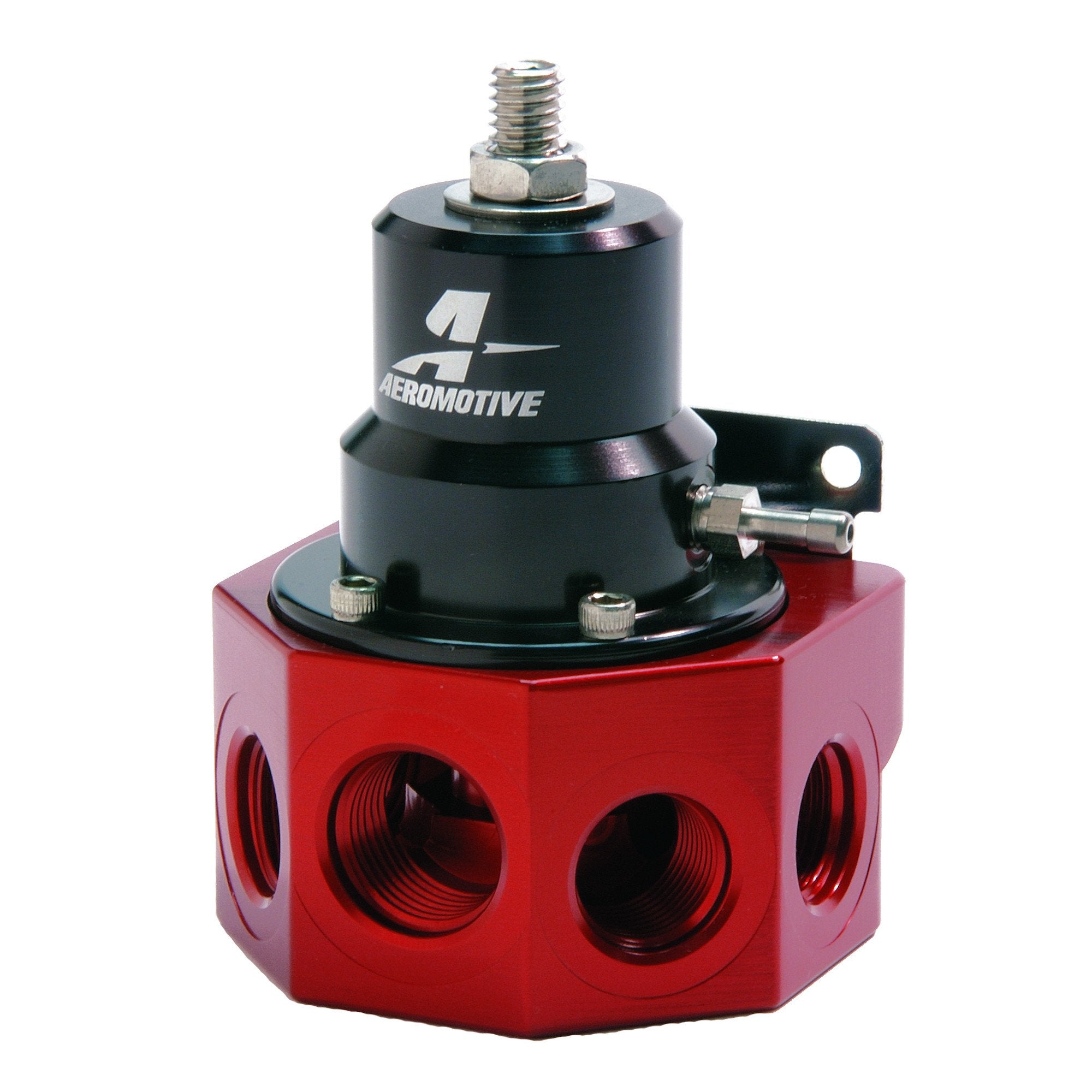

Aeromotive A2000 Carbureted Bypass Regulator - 4-Port

Part Number 13202: A2000 Bypass Regulator

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.

• Adjustable from 2-20 PSI.


• Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)


• Fuel pressure rises on a 1:1 ratio when referencing boost.


• ORB-10 inlet and return ports.


• Part Number 13202 provides (4) ORB-08 outlet ports.Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (Part Number 11102), Eliminator (Part Number 11104), or Belt Drive Fuel Pump (Part Number 11105) are strongly recommended.View Installation Instructions
