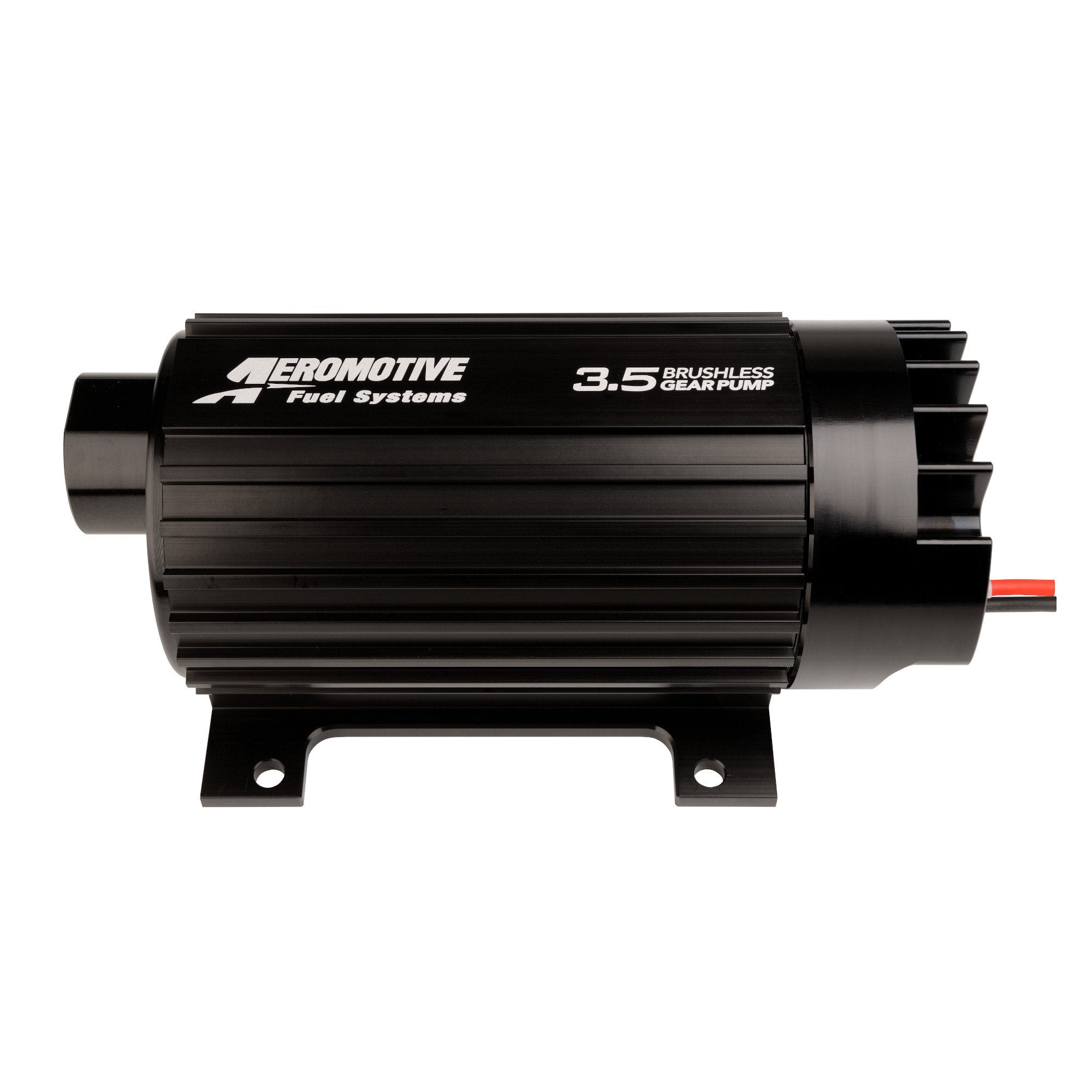

Aeromotive Fuel Pump, In-Line, Signature Brushless Spur Gear, 3.5gpm (Pump Sleeve Includes Mounting Provisions)
Pro-Series Performance Plus Advanced Technology
- The Pro-Series performance you expect and more:
-
Fuel injected engines:
up to 2400 FWHP - naturally aspirated
up to 1800 FWHP - forced air induction -
Carbureted engines:
Up to 2600 FWHP - naturally aspirated
Up to 2000 FWHP - forced air induction
-
Fuel injected engines:
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional Pro-Series pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
View Installation Instructions
Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells. Click Here for More Info
