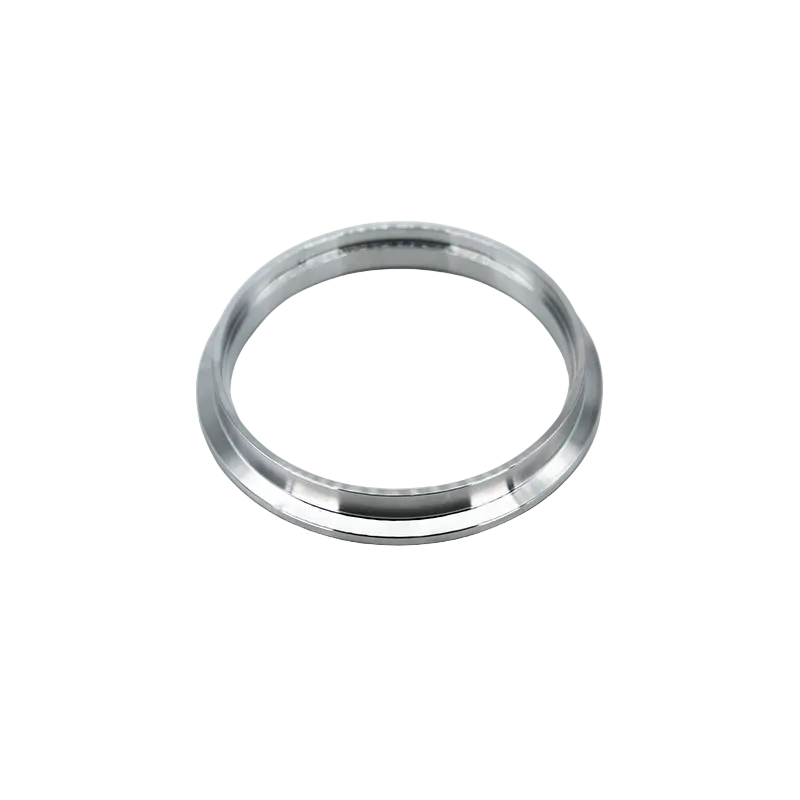

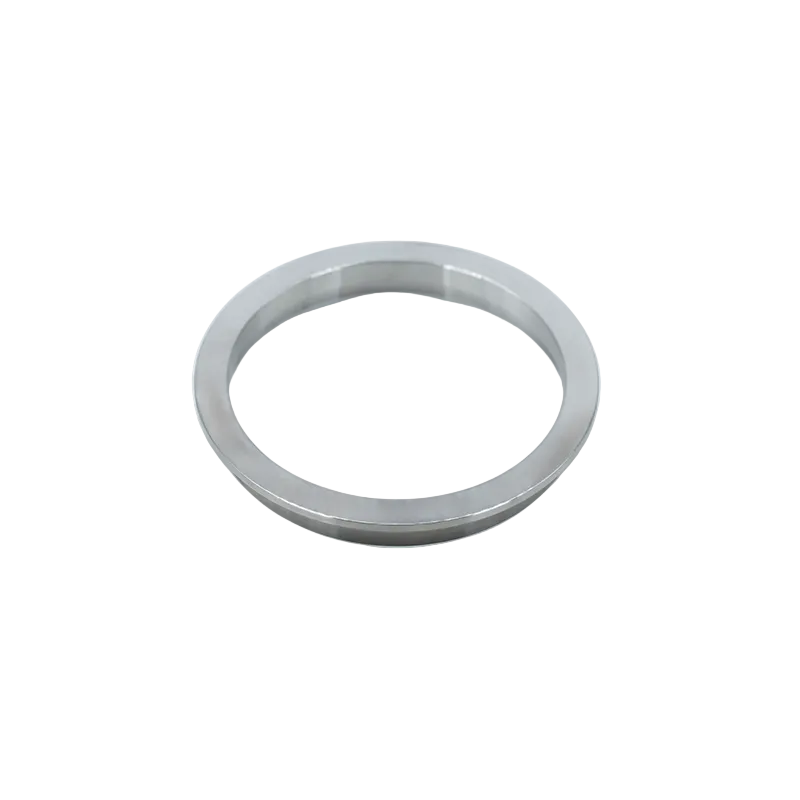

CT5RX 4" V-Band SS Downpipe Side Flange for T4 Turbine Housing
4-Inch Stainless Steel V-Band Downpipe Side Flange
The 4" Stainless Steel V-Band Discharge Flange is for CT5RX Turbochargers with T4-style turbine housings (.90 / 1.00 / 1.10 / 1.25 A/R). Precision-machined from 304 stainless steel.
Key Features:
-
For T4-style turbine housings on CT5RX models only
-
Compatible with .90 / 1.00 / 1.10 / 1.25 A/R CT5RX turbine housings
Dimensions Specifications:
-
Matching Tube Size: 4"
-
Overall Flange OD: 4.620"
-
Flange Apex Width: .137"
-
Overall Length (OAL): 1.060"
For use in CT5RX T4 Style Turbine Housings
