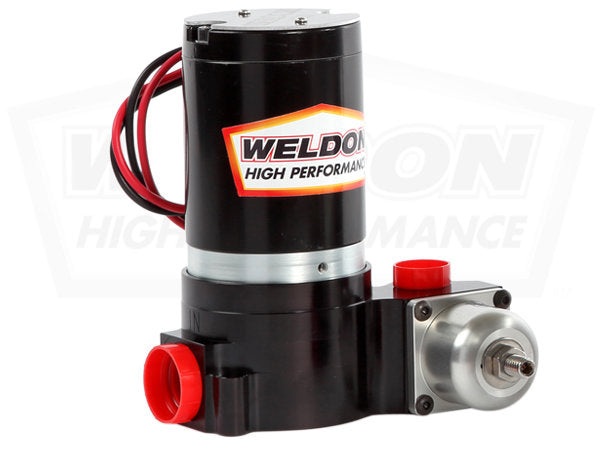

Weldon 16000 Carb Pump Series 1400HP & Higher Fuel Pump

Weldon 16000 Carb Pump Series 1400HP & Higher Fuel Pump

Features:

• There are two versions of the 16000 Series:
  • 16250-A at 250 GPH supports 2000+ HP
  • 16420-A at 420 GPH supports 3000+ HP
• Not For Continuous Duty Street Use
• Multiple position mounting holes allows for easy drop-in replacement for most existing large displacement electric pumps
• Self priming and does not require mounting beneath the fuel cell
• -12 o-ring ports - inlet / outlet
• -8 o-ring port - return to tank
• Uses the same Aerospace proven Teflon® lip seal as our other fuel pumps, eliminating the possibility of seeping, leaking or failure
• 1.75 Sq In Teflon® diaphragm – the largest in the industry
• Integral adjustable relief valve which provides stable pressure compensation as fuel demand increases
• Billet aluminum pump housing with MIL-SPEC anodizing
• Stainless Valve Seat with a .438" return orifice
• High efficient brush type electric motor
• 10 vane steel pump element provides a balanced assembly ensuring precise and consistent fuel delivery under the most demanding conditions
• Individually flow tested on gasoline and each pump is supplied with its own pump “dyno” sheet
• Compatible with 12 to 16 volt systems
• Weight is 7.5 lbs


Compatible Fluids:

• Gasoline
• Methanol
• Diesel
• Ethanol
• All race fuels
