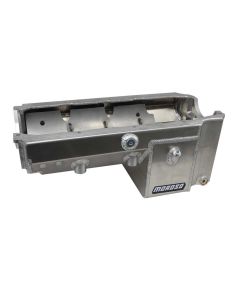

Oil Pan, Dart, Rocket Small Block, Double Power Kick Outs, 8.5 In. Deep

Pro Eliminator; Drag Race DART/ROCKET Oil Pan; 8 Qt.; Internal Wet Sump Design; Depth-8.5 in.; Double Kick Out Design; Incl. Magnetic Drain Plug; Aluminum;

• Aluminum, Wet Sump, 8 Quart Capacity, 8-1/2" deep
• Engine Application: Small Block Style Dart Iron Eagle/Rocket
• Fits: Super Stock/Bracket Cars, Dragsters, Roadsters or Body Cars
• Aluminum, fully fabricated oil pan accepts 4.25" strokes with steel or aluminum rods
• Double kick-out design ensures large stroke clearance, wide main cap clearance and maximum horsepower
• Billet end seals ensure consistent sealing surface to billet front covers and rear main caps
• For use with 168-tooth flywheel combination
• Lourvered windage tray with main cap partitions for maximum power and oil control
• Features O-ring magnetic drain plug, two -8AN drain backs and dipstick bung
• Recommended oil pan gasket Fel-Pro Part No. 1839
• DART/ROCKET SMALL BLOCK
• Aluminum, Wet Sump, 8 Quart Capacity, 8.5” Deep
• Fits: Super Stock/Bracket Cars, Dragsters, Roadsters or Body Cars
• Aluminum, fully fabricated oil pan accepts 4.25" strokes with steel rods
• Double kick-out design ensures large stroke clearance, wide main cap clearance and maximum horsepower
• Billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
• For use with 168-tooth flywheel combination
• Solid louvered windage tray w/main cap partitions for maximum power and oil control
• Features O-ring magnetic drain plug, two –8AN drain backs and dipstick bung

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: SBC ¾” Inlet, M10552/M10555 Style Pumps
24350 Fits Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320 Fits: Moroso BBC HV Race Pump No. 22150 or M77HV style Pump
Part # OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146 Moroso High Volume Package with ¾” dia. Inlet
22139 Moroso High Volume with Anti-Cavitation Grooves Package
22171 Moroso Billet Aluminum Oil Pump
Part # AVAILABLE OIL PAN OPTIONS
23962 Filter Fitting, -16AN Male to -16 Male with External Screen
23963 Filter Fitting, -12AN Male to -16 Male with External Screen
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38388 Bullet Nose Oil Pan Stud Kit
