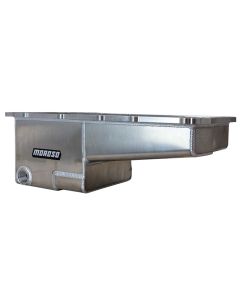

Oil Pan, GM LS, 16-Up, Copo, Drag Race, -16An Pick Up, 7.5 In. Deep
Drag Race Oil Pan; 7 Qt; Wet Sump; Alum, Ext. P/U -16 AN, COPO CAMARO '16-UP
- Aluminum, Wet Sump, 7 Quart Capacity, 7-1/2" deep
- Engine Application: GM LS Series
- Fits: COPO Camaro '16-up and rear sump applications (check measurements)
- Features trap door baffle assembly, anti-climb baffle and anti-slosh baffle to keep oil contained in the oil pump pickup area during Drag Racing
- Oil pan has a thick aluminum rail with a fabricated aluminum sump
- Clears 4.25" stroke with most steel rods and can be used with Moroso Part Nos. 22941, 22943 or O.E.M. windage trays such as Part Nos 12611129, 19244049, 19202609 - check clearances first
- Features a billet aluminum adapter with a 1/4" N.P.T. sensor port that accepts a 22 mm thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Has a -16AN External Pickup
Manufacturer-listed related parts and options:
Part # Requires the following GM Parts to complete the installation of Part No. 21157 on engine
12570788 Dipstick
12570787 Dipstick Tube
Part # AVAILABLE OIL PAN OPTIONS
22463 Oil Filer, Moroso Racing
23962 Fitting, -16AN Male to -16AN Male, External Screen
23963 Fitting, -12AN Male to -16AN Male, External Screen
93152 Oil Pan Gasket, One Piece Design, steel Reinforced GM LS Series (Except LS7 & LS9)
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso & Aftermarket Oil Pans
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
23707 Spin-On Oil Filter Adapter, 90 Degree Remote
23711 Spin-On Oil Filter Adapter, Sideways Mount
23703 Spin-On Oil Filter Adapter, External Input Inlet, Outbound Rail
25030 Oil Galley Diverter, GM LS
