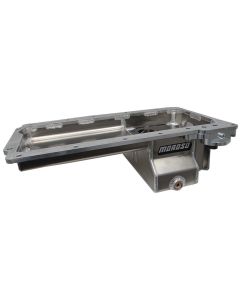

Oil Pan, GM LS, Early F-Body, Road Race, Spin-On Oil Filter Adapter
Oil Pan, Aluminum, LS Early F-Body Road Race Baffling, Uses Moroso Part #22462 or Similar Filter
- Aluminum, Wet Sump, 7 Quart Capacity, 6" Deep Sump
- Fits: Fits: 1967-'15 Camaro/Firebird, 1968-'78 Nova, 1965-'72 Chevelle, 1953-'96 Corvette, 1978-'88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications; check dimensions for clearance
- Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
- Oil pan has a thick aluminum rail with a fabricated aluminum sump
- Clears 4.25" stroke with most steel rods and can be used with Moroso Part Nos. 22941 and 22943 Windage Tray
- Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter
- Included billet aluminum oil fi lter adapter has a ¼" N.P.T. sensor port
- Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUP
24050 Fits Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump, GM LS, Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22463 Oil Filer, Moroso Racing
23688 Remote Oil Filter Adapter, GM LS
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Remote Oil Filter Mount
24890 GM LS Oil Pump Flange Reinforcement
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Rind, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
