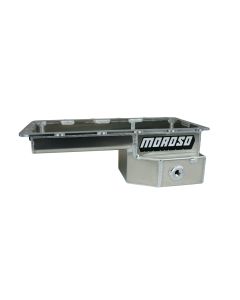

Oil Pan, Ford 5.0 Coyote,Drag Race Baffled, Rear T-Sump, Fox Swap, Aluminum

Oil Pan, Ford 5.0 COYOTE, Fox Body Mustang 79-93 and other Fox Body chassis with Ford "Coyote" Engines, Fully Fabbed Alum., Drag Race Baffling, 1/2" NPT fittings for oil temp. sender and supercharger drainback, 20 mm fitting for the factory oil level sensor

• Aluminum, Wet Sump, 7.5 Quart Capacity, 6-5/8" Deep
• Engine Application: Ford 5.0 “Coyote”
• Fits: Fits: '79-'93 Mustang with 5.0 Coyote/5.2 Voodoo swaps using BBK or American Racing Headers
• Pan has a thick billet aluminum rail
• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
• Features a race proven trap door assembly and anti-slosh baffle that keeps oil contained in the oil pump pickup area during launches and deceleration
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• *If the factory low oil warning sensor is not going to be used, Part No. 22738 20 mm Plug with cooper washer is available

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24574 Fits: Factory 5.0 “Coyote”/5.2 Voodoo Gen 1 & 2 Oil Pumps
24579 Fits: Factory 5.0/5.2 Gen 3 Oil Pumps
Part # AVAILABLE OIL PAN OPTIONS
22936 Windage Tray & Oil Pan Gasket, Ford 5.0 Coyote, Ford 5.2 Voodoo
22738 Factory Low Warning Sensor Plug, 20mm
22203 Standard Volume, Oil Pump
