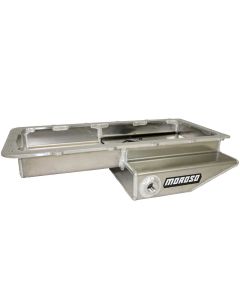

Oil Pan, Ford 5.0 Coyote, Cobra Replica, Road Race Baffled, Rear T-Sump, Alum.

Oil Pan, Ford 5.0 COYOTE/Modular, Kit Car or Factory Five, Sump 4.5" Deep, 10 7/8" Long, 14.5" Wide with Road Race Baffling, Aluminum

• Aluminum, Wet Sump, 9.5 Quart Capacity, 4-5/8" Deep
• Engine Application: Ford "Coyote"/5.2 "Voodoo" Engines
• Fits: Cobra Kit Cars that require a rear sump oil pan
• Designed for Cobra Replicas that require a shallow, rear sump oil pan
• Fully fabricated aluminum sump with a thick raile
• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 “Voodoo” Gen 1 or 2 factory windage tray and dipstick
• Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• *If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24570 Fits: Moroso Part No. 22203, Factory 5.0/5.2 Gen 1 & 2 Oil Pumps
24577 Fits: Factory 5.0/5.2 Gen 3 Oil Pumps
Part # AVAILABLE OIL PAN OPTIONS
22738 Factory Low Warning Sensor Plug, 20mm
22936 Windage Tray & Oil Pan Gasket, Ford 5.0 Coyote, Ford 5.2 Voodo
22203 Standard Volume, Oil Pump
